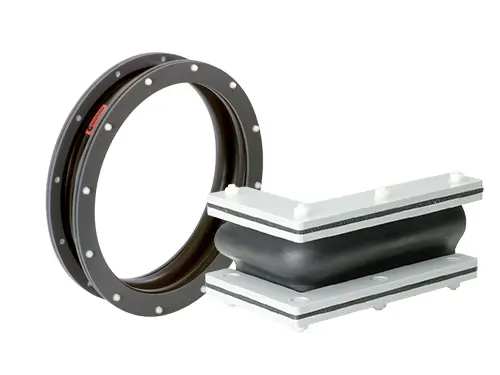

Non-Metallic Compensators
WILLBRANDT offers non-metallic compensators made of rubber foils or single or multi-layer fabrics with or without coating.
Flexible and easy to use
Non-metallic compensators are mainly used in air, exhaust air and exhaust gas systems as well as in bulk goods and conveyor technology, where they absorb thermal expansion, vibrations, misalignments and settlements. Thanks to a wide variety of different rubber foils and fabrics with and without coating, the expansion joints can be designed and produced for a wide range of media and temperatures.
Applications

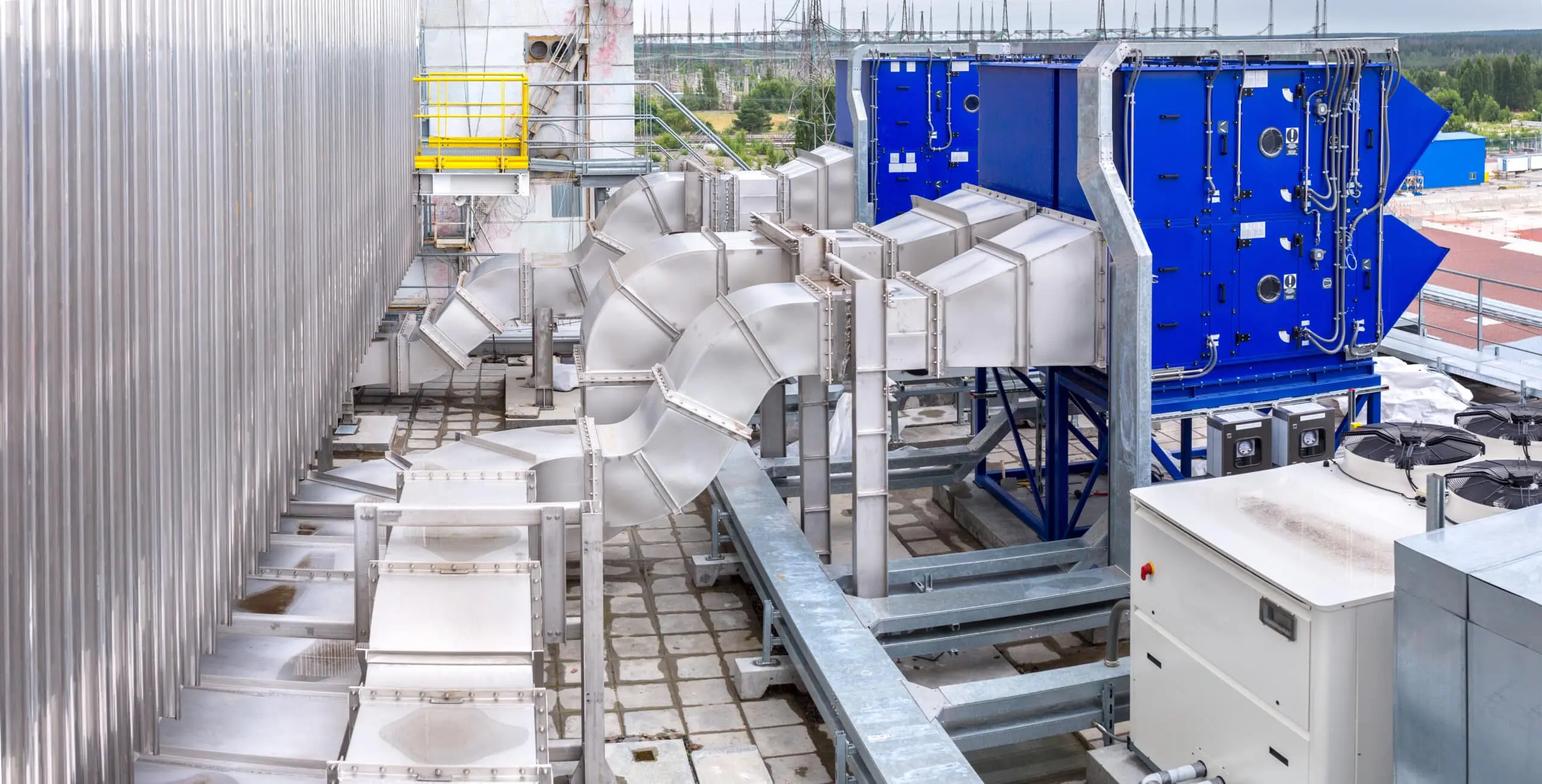

- Air conditioning and ventilation technology
- Coal, oil and nuclear power plants
- Blast furnaces and sintering plants
- Cement industry
- Engine construction
Benefits and strenghts
- High compensation capacity
- High flexibility
- Low weight
- Easy to use
Haben Sie Fragen?
If you have any application or product-specific questions, please contact our specialists from the technical department. We will be happy to help you.
Phone +49 40 540093-0
info@willbrandt.de
Product overview

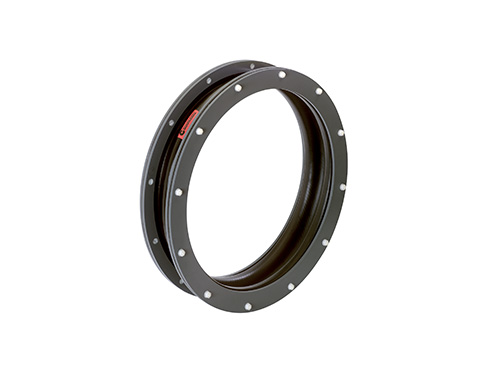

TYP 64
Compensator moulded from rubber foil, highly variable in nominal width and length
- DN range: variable
- Overall length (mm): max. 500 mm
- Pressure range (bar): max. 0.2/0.33
- Areas of application: Air/exhaust air, bulk material and conveyor technology

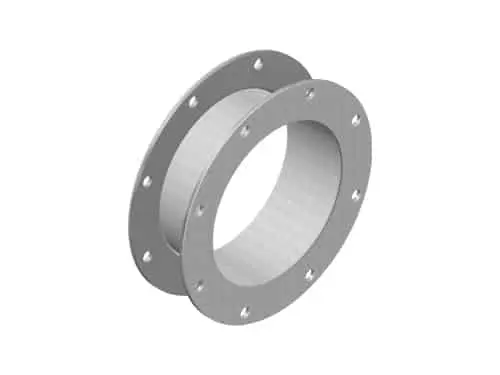

Type series 400
Single or multi-layer fabric expansion joint, highly variable in nominal width and length
- DN range: variable
- Overall length (mm): variable
- Pressure range (bar): max. 0.49
