PTFE-Expansion Joints
WILLBRANDT supplies PTFE expansion joints in two versions – the standard version, moulded from an extruded PTFE tube, and a version for higher pressures, made from paste-like PTFE material, which ensures a uniform wall thickness.
For high chemical resistance
PTFE expansion joints are used in systems where high chemical resistance is required or in food processing systems, where PTFE is characterised by its food conformity and anti-adhesive properties. In these systems, the PTFE expansion joint has a noise-damping effect and compensates for expansion and subsidence. Thanks to the two available variants with up to seven shafts, we can offer PTFE expansion joints for a wide range of applications.
Applications

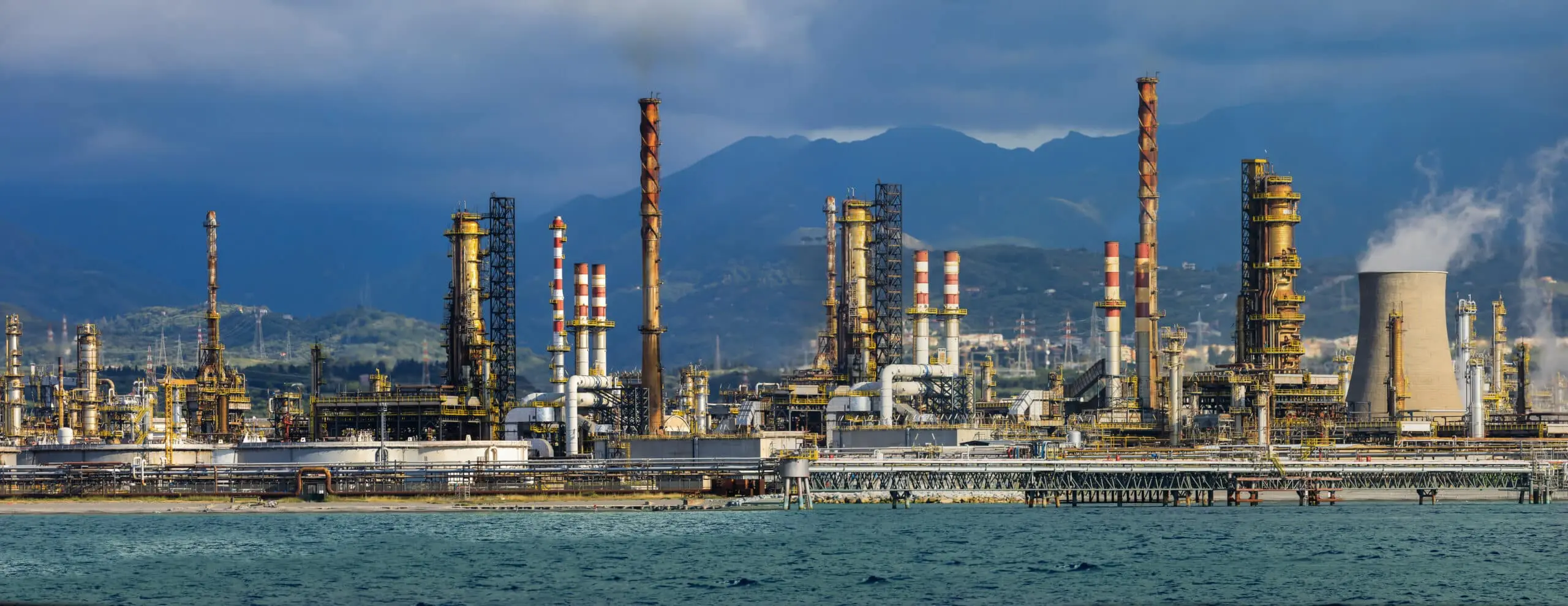

- Chemical plants
- Food industry
Benefits and strengths
- High chemical resistance
- High temperature resistance
- Anti-adhesive
Do you have any questions?
If you have any application or product-specific questions, please contact our specialists from the technical department. We will be happy to help you.
Phone +49 40 540093-0
info@willbrandt.de
Product overview

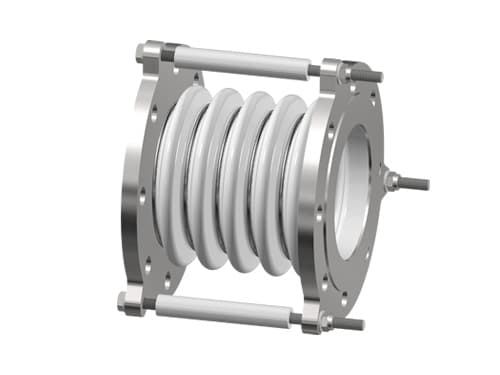

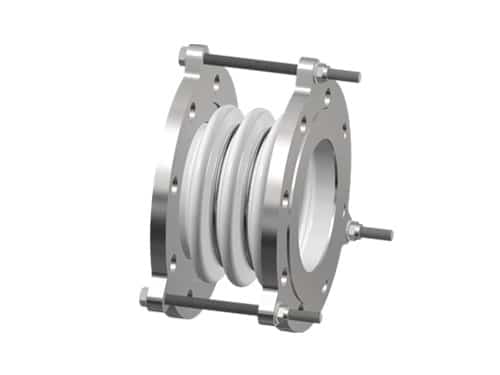

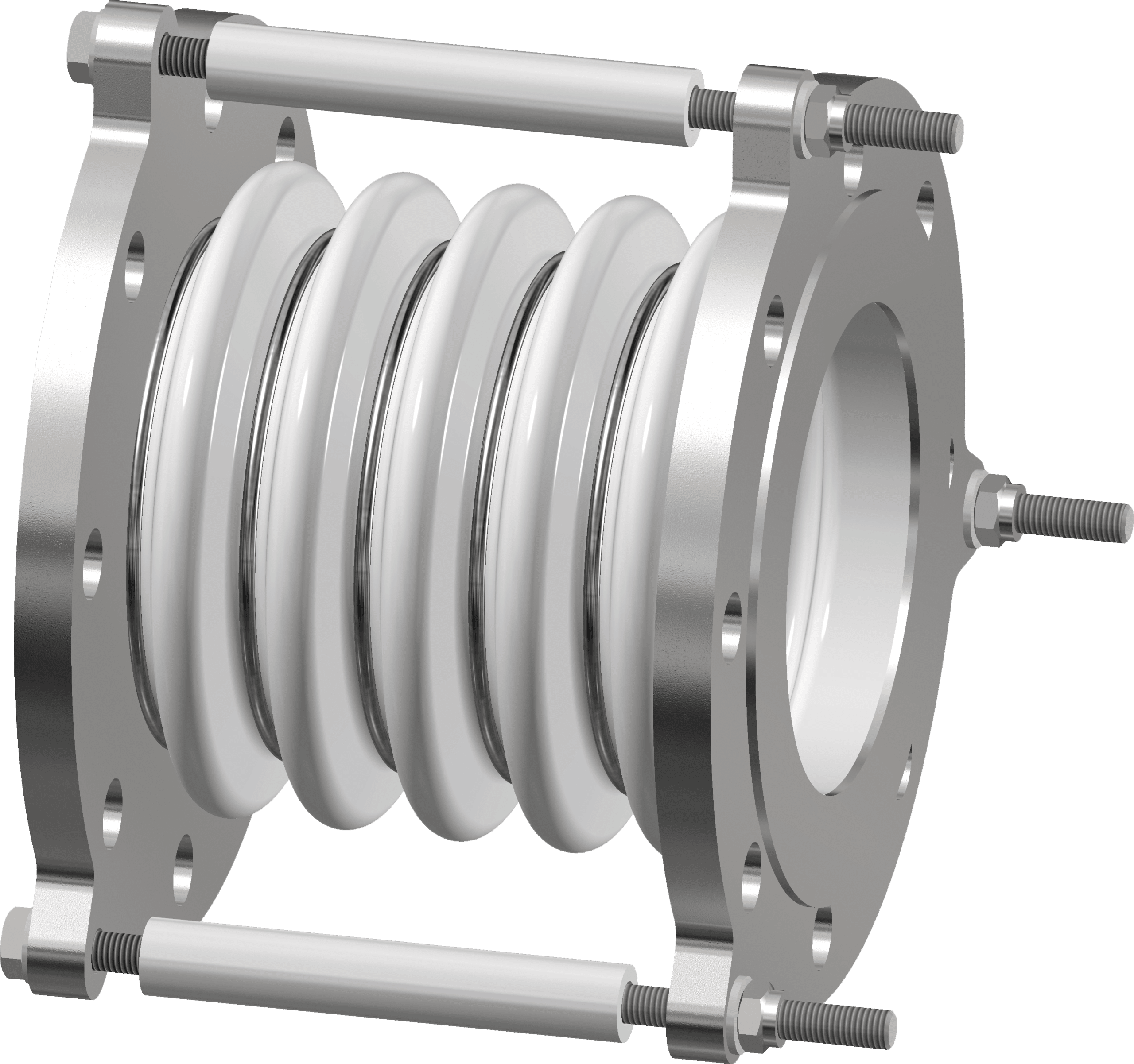

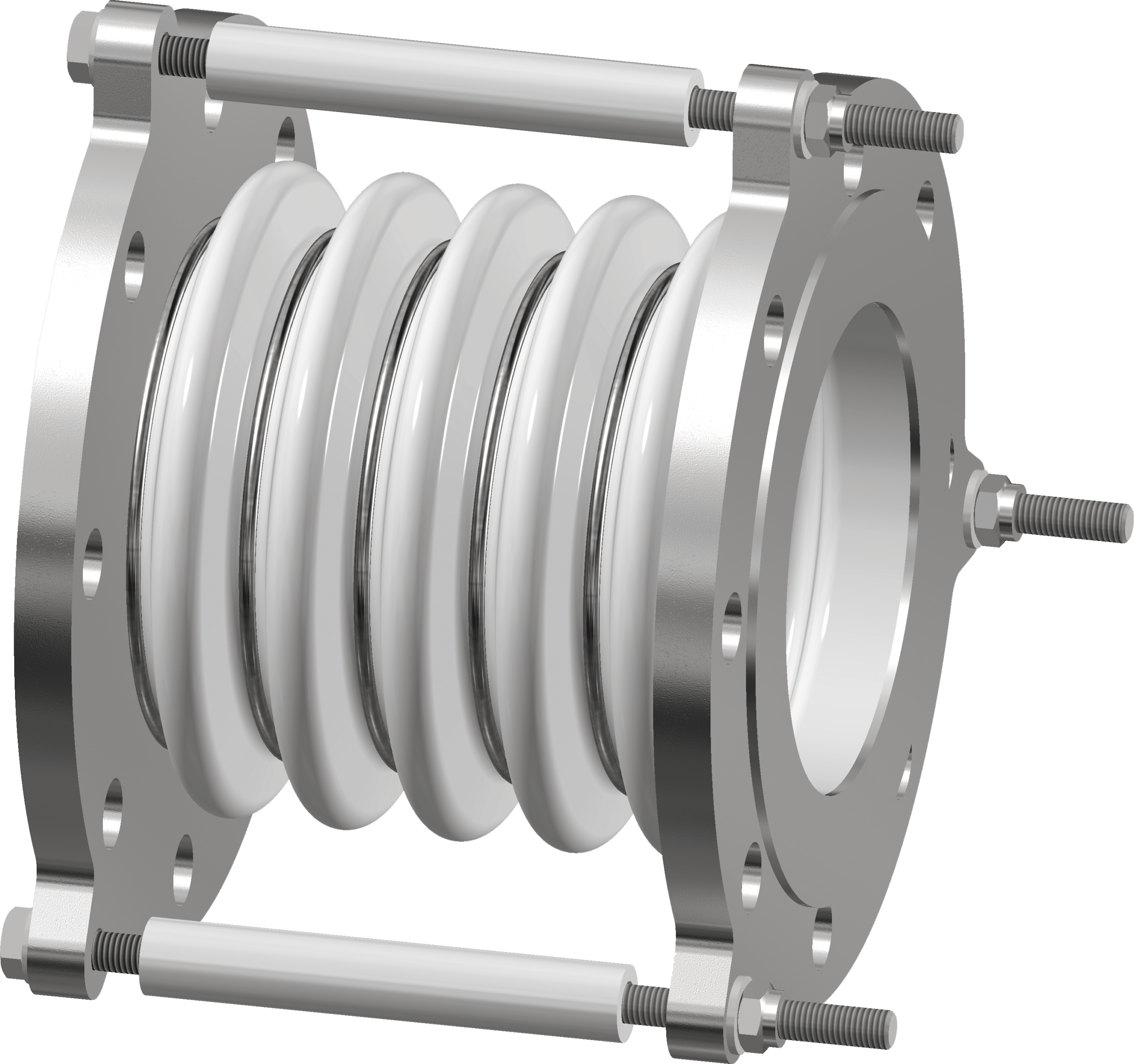

TYP 81 PTFE
- DN range: 20 – 500
- Overall length (mm): 40 – 320
- Pressure range (bar): max. 3 (DN 500) – 13 (DN20)
- Areas of application: Chemical plants
- partly in stock
TYP 81 HD PTFE HD
- DN range: 25 – 1500
- Overall length (mm): 40 – 280
- Pressure range (bar): max. 5 (DN 500) – 13 (DN20)
- Areas of application: Chemical plants
- not in stock
