Tie Rods

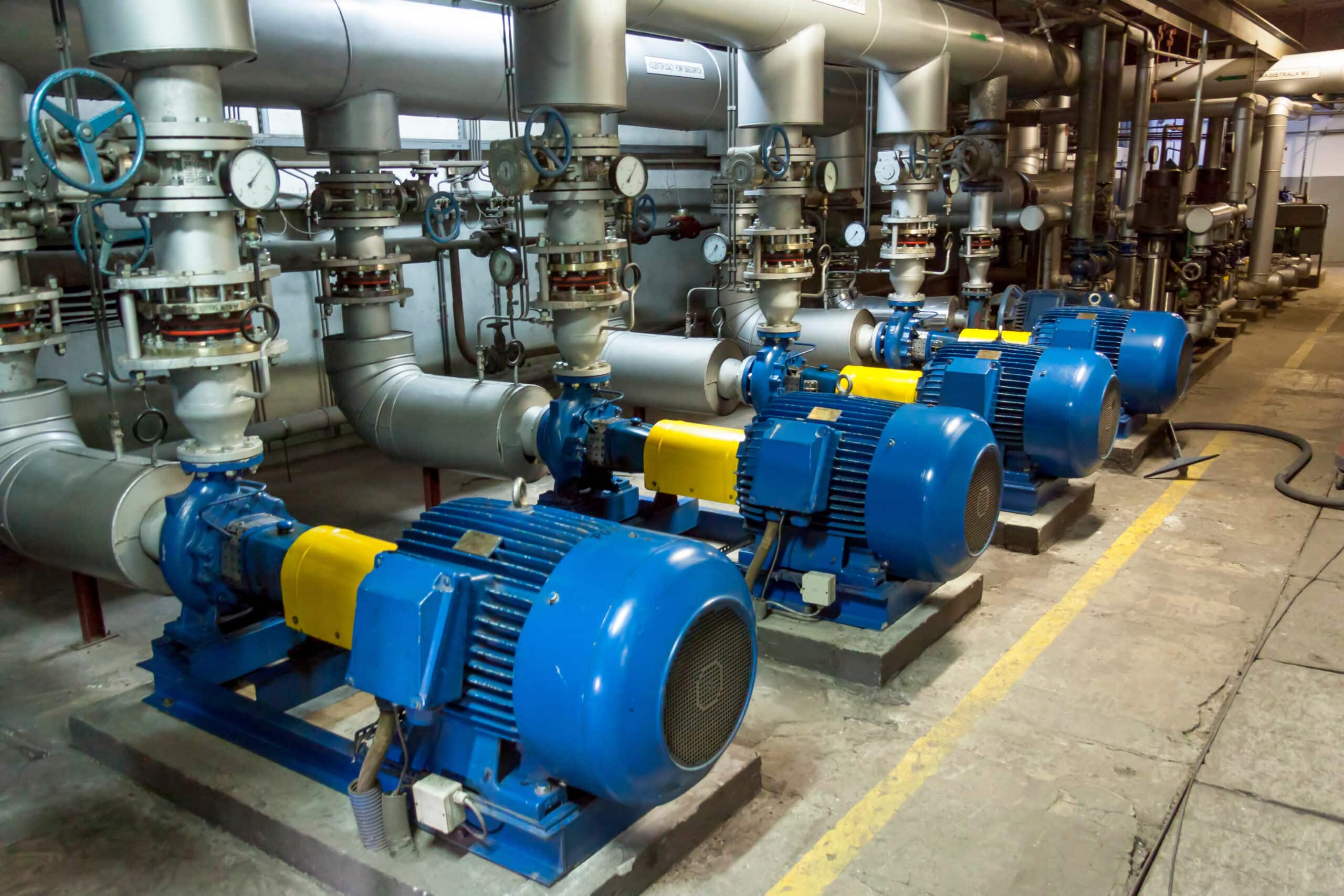

Tie rods for expansion joints are available in various designs, depending on the required function, nominal width and operating pressure.
Targeted tensioning – targeted protection
tie rods the movement and thus protects the expansion joint from damage caused by overstretching or excessive compression or absorbs the reaction forces from the expansion joint, protecting neighbouring components from additional forces.
Product overview

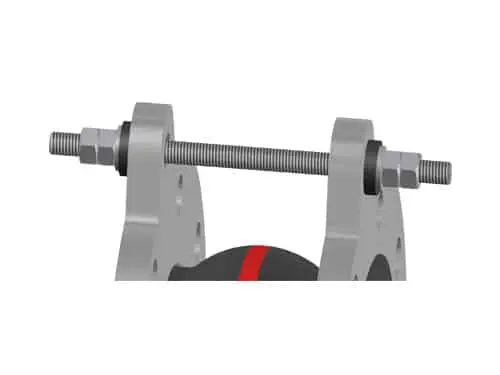

Version B
Tensioned, mounted in rubber bushes
- Absorption of the reaction force
- Length limitation (stretching)
- Noise and vibration damping
- Suitable for lateral expansion absorption
- Fixed point load: lateral adjustment force
- DN-range:
Rotatable flanges
20 – 150 (PN) > (PN 16)
200 (PN) > (PN 10)

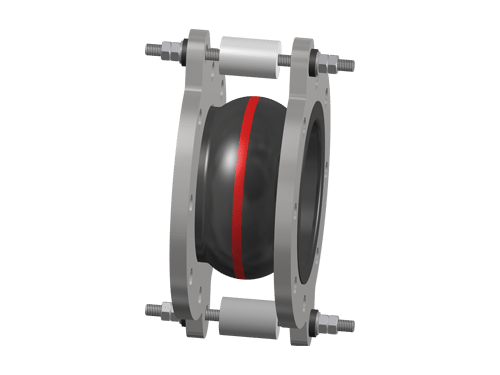

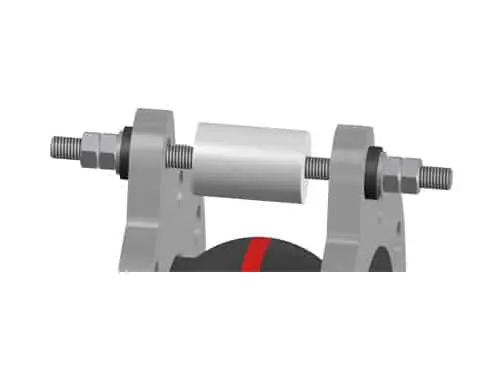

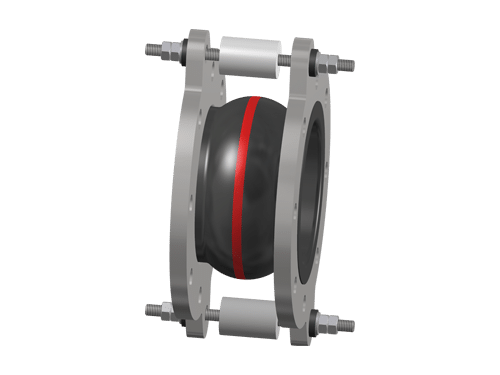

Version C
Tensioned/shear-limited, mounted in rubber bushes, internally with shear limitation (plastic bushing)
- Absorption of the reaction force
- Length limitation (stretching + compression)
- Noise and vibration damping
- Suitable for lateral expansion absorption
- Fixed point load: lateral adjustment force + frictional force for external stop, full reaction force + axial adjustment force for compression
- DN-range:
Rotatable flanges:
20 – 150 (PN) > (PN 16)
200 (PN) > (PN 10)

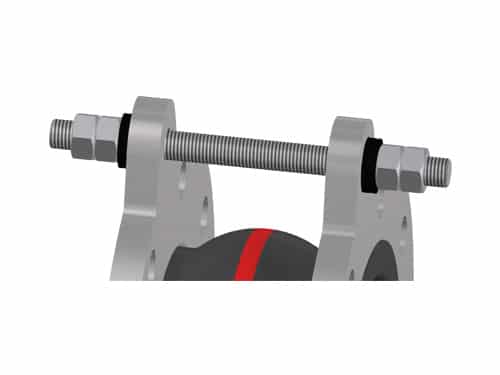

Version E
Tensioned, mounted externally in spherical discs / conical sockets
- Absorption of the reaction force
- Length limitation (elongation)
- Low frictional forces due to PTFE coatings
- Suitable for lateral expansion absorption
- Fixed point load: lateral adjustment force + frictional force
- DN-range:
Rotatable flanges: DN 200- DN 1000
Full rubber flanges DN 40 – DN 5000

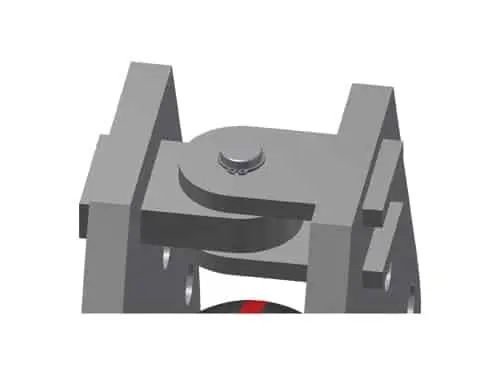

Version F
Joint tension
- Recording the reaction force
- Suitable for angular movement recordings in one plane
- By combining 2 or 3 pieces, large angular movements and strains from 2 planes can be absorbed
- Fixed point load: angular displacement force + friction force
- DN-range:
Rotatable flanges: DN 32- DN 1000
Full rubber flanges: DN 200 – DN 5000

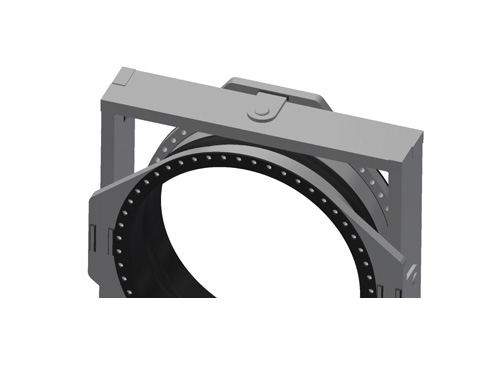

Version G
Cardan joint tensioning
- Recording the reaction force
- Suitable for angular movement recordings in a circular plane
- By combining 2 or 3 pieces, large angular movements and strains from 2 planes can be absorbed
- Fixed point load: angular displacement force + friction force
- DN-range:
Rotatable flanges: DN 32- DN 1000
Full rubber flanges: DN 200 – DN 5000

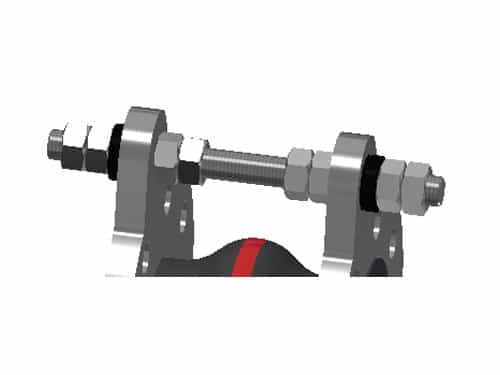

Version H
Tensioned/shear-limited, mounted externally in ball discs/conical sockets internally with shear limitation (nuts)
- Absorption of the reaction force
- Length limitation (stretching + compression)
- Low frictional forces due to PTFE coating
- Suitable for lateral expansion absorption
- Fixed point load: Lateral adjustment force + frictional force + axial load with external stop
- DN-range:
Rotatable flanges: DN 200 – DN 1000
Full rubber flanges: DN 40 – DN 5000

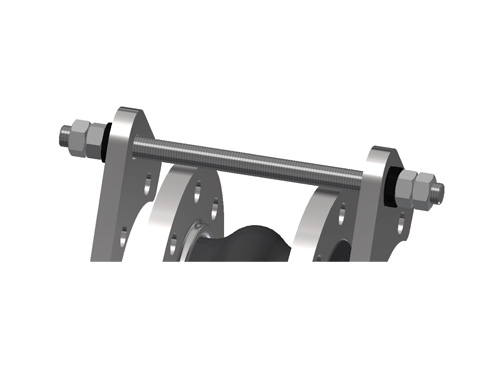

Version K
Segment bracing – tension-braced, mounted externally in spherical discs / conical sockets
- For subsequent tensioning of expansion joints
- Absorption of the reaction force
- Length limitation (stretching)
- Low frictional forces due to PTFE coating
- Fixed point load: lateral adjustment force + frictional force
- DN-range:
Rotatable flanges: DN 200 – DN 1000
Full rubber flanges: DN 40 – DN 5000

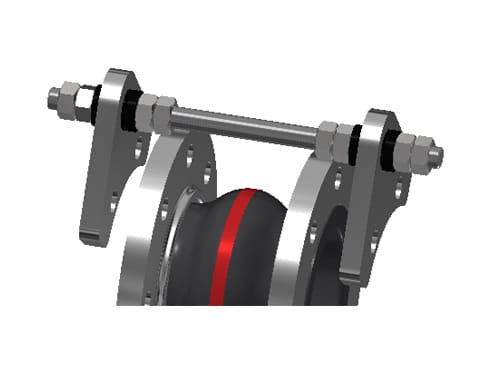

Version L
Segment bracing – tensioned / shear-limited, mounted externally and internally in spherical discs / conical sockets
- For subsequent tensioning of expansion joints
- Length limitation (stretching + compression)
- Low frictional forces due to PTFE coating
- Fixed point load: lateral adjustment force + frictional force
- DN-range:
Rotatable flanges: DN 200 – DN 1000
Full rubber flanges DN 40 – DN 5000

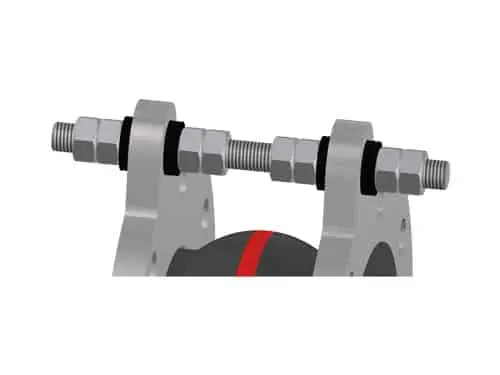

Version M
Tensioned / shear-limited, supported externally and internally in spherical discs / conical sockets
- Absorption of the reaction force
- Length limitation (stretching + compression)
- Low frictional forces due to PTFE coating
- Fixed point load: lateral adjustment force + frictional force
- DNrange:
Rotatable flanges: DN 200 – DN 1000
Full rubber flanges: DN 40 – DN 5000

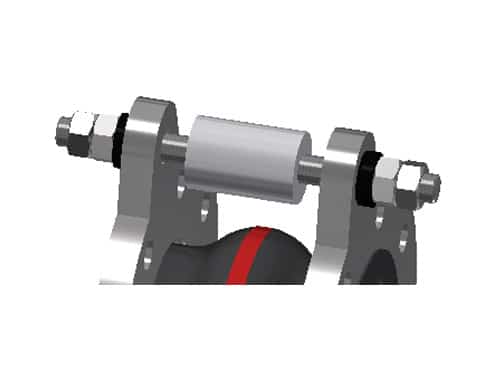

Version S
Tensioned / shear-limited, mounted externally in spherical discs / conical sockets internally with shear limitation (plastic bushing)
- Absorption of the reaction force
- Length limitation (stretching + compression)
- Low frictional forces due to PTFE coating
- Suitable for lateral expansion absorption
- Fixed point load: lateral adjustment force + frictional force for external stop, full reaction force + axial adjustment force for compression
- DN-range:
Rotatable flanges: DN 200 – DN 1000
Full rubber flanges: DN 40 – DN 5000

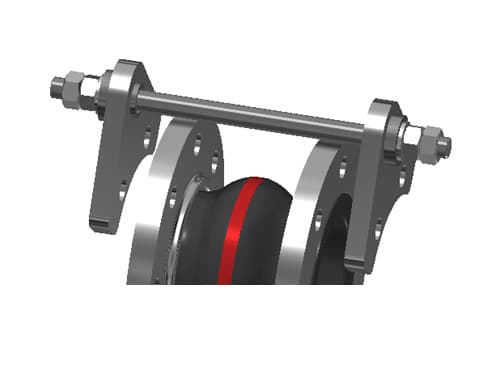

Version R
Segment tensioning – tensioned in rubber bushes
- For subsequent tensioning of expansion joints
- Absorption of the reaction force
- Length limitation (stretching)
- Noise and vibration damping
- Suitable for lateral expansion absorption
- Fixed point load: lateral adjustment force
- DN-range:
Rotatable flanges: DN 200 – DN 200 (PN10)
