Power Transmission Elements
As a longtime partner of ContiTech, we offer you high-quality drive belts that ensure maximum efficiency and reliability in your machines. Our range of
V-belts, V-ribbed belts, timing belts, flat belts and much more offers you the ideal solution for your requirements.
Without drive belts, the world stands still.
As a supplier of high-quality drive belts, we offer a wide selection of durable drive belts for your applications. Our belts are characterised by efficient power transmission as well as low-noise and maximum power transmissio.
Applications
- Mechanical engineering
- Industrial applications
- Facility systems
- Storage technology
- Air conditioning and ventilation technology
- Agricultural technology
Benefits and strenghts
- Efficient power transmission
- Low noise and vibration
- Low-maintenance operation
- Long service life
- Suitable for many different applications
Do you have any questions?
If you have any application or product-specific questions, please contact our technical specialists.We will be happy to serve you.
Product overview
V-belts
- Raw edge or wrapped
- Cost-efficient
- Wide range of types
- e.g. CONTI V and CONTI VX
Timing belts
- Synchronised power transmission
- Made of rubber or PU
- High efficiency
- Maintenance-free
- e.g. CONTI SYNCHROFORCE, SYCHRODRIVE, SYNCHROCHAIN
V-ribbed belts
- High bending capacity
- High transmission ratios
- Higher power consumption than V-belts
- e.g. CONTI V MULTIBELT
Flat belts
- For heavy loads
- Available as load or drive belts
- For low belt speeds
- e.g. CONTI POLYFLAT
Special belts
- CONTI SYNCHRODRIVE N10,
- CONTI Silent Sync, Falcon PD
- Nubbed belt N10
- Tailor-made polyurethane timing belts
Power belts
- Additional cover layers
- Composite of multiple individual belts
- High transverse rigidity
- For large distance distances
Conti Synchromotion
- Endless PU timing belt
- For applications in the transport and drive sector
- More freedom and flexibility in the design thanks to variable centre distances
- Lengths from 1,500 to 14,500 mm

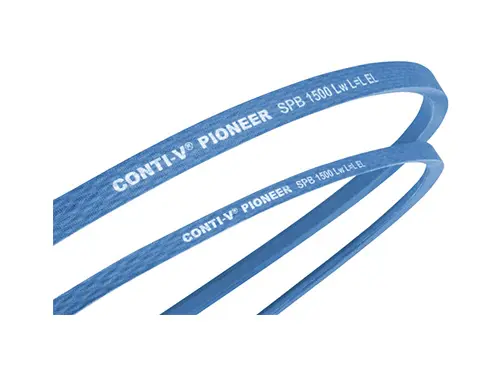

V-belts
Product description:
ContiTech V-belts are manufactured as wrapped belts for strengh environmental conditions and as raw edge belts for maximum power transmission. These belts are characterized by high quality and tight manufacturing tolerances, making them the first choice for your drive systems.
Depending on the design, the V-belts are suitable for temperatures ranging from -55 °C to +130 °C, offer limited resistance to chemicals, oil, and grease, and are electrically conductive and abrasion-resistant.
- Compressor drives
- Test benches
- Ventilation and facility systems
- Mechanical Engineering

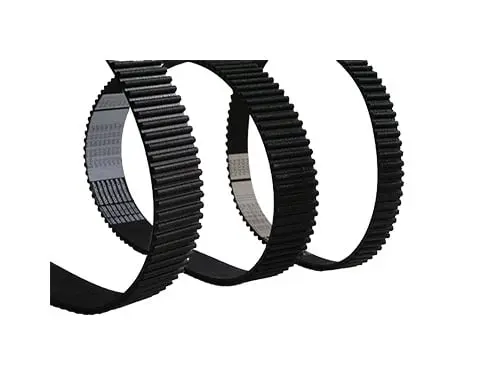

Timing belts
Product description:
Timing belts represent a form of positive (non-slip) drive and enable synchronous power transmission. They are distinguished by efficient power transfer, with an efficiency of up to 98%.
Because of the wide variety of tensile cords – including glass cord, steel, aramid, and carbon – and tooth profiles such as HTD, STD, and CTD, there is a suitable timing belt available for virtually every drive application.
Available belt sizes:
- Linear actuators
- Positioning drives
- Mmechanical engineering
- Conveyor systems
Proven areas of application:
- Metric profiles: 5M, 8M, 14M
- Inch profiles: XL, L, H
- Metric profiles: T2.5, T5, T10, AT5, AT10
Other profiles available on request.

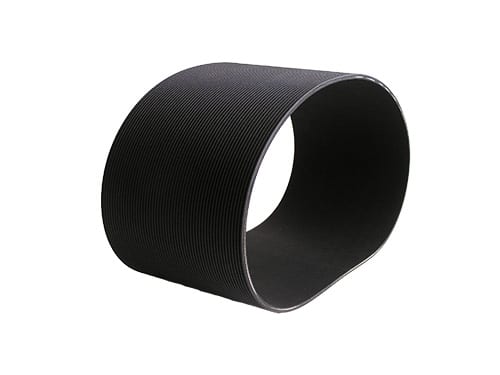

V-ribbed belts
Product description:
Poly-V belts were developed as an extension of classical V-belts. They combine the high flexibility of flat belts with the efficient power transmission of V-belts. Due to their excellent flexibilty, they are particularly well-suited for serpentine drive systems.
Extreme transmission ratios can be achieved. In addition to polyester as the standard tensile member, aramid cords can be used in profiles PL and PM.
A power transmission efficiency of up to 98% is possible.
Proven areas of application:
- Compressor drives
- Washing machines
- Multi-shaft drives
- pump drives
- Mechanical engineering

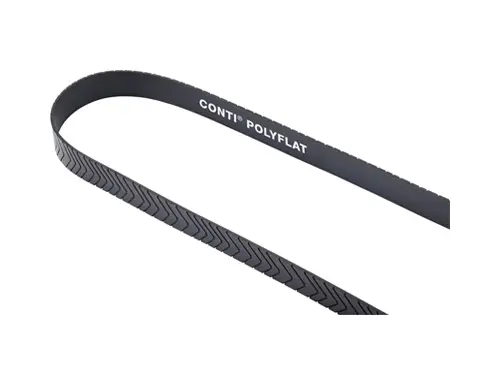

Flat belt
Product description:
Due to a greater flexibility and traction, the CONTI® POLYFLAT PU flat belt enables compact drives with significantly smaller pulley diameters compared to conventional drives with steel cables. Drive pulleys with a diameter of 100 mm or less enable the use of space-saving geared motors.
The steel cord-reinforced polyurethane belts are extremely flexible, abrasion-resistant and durable. Galvanised steel makes them corrosion-free, while the polyurethane ensures greater traction and more efficient power transmission.
Proven areas of application:
- Freight elevator
- Sports equipment
- Warehouse storage systems
- Lifting applications

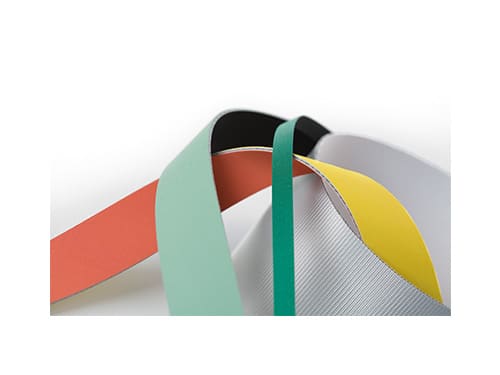

Special belts
Product description:
With special belts from ContiTech such as the SilentSync, the Falcon PD or the N10 nubbed belt, as well as PU timing belts with vacuum holes, cleats, etc. specially manufactured for your needs, we offer the right belt for all your applications.
Proven areas of application:
- Medical technology
- Paper industry
- Mechanical engineering
- Packaging machines
- Industrial applications

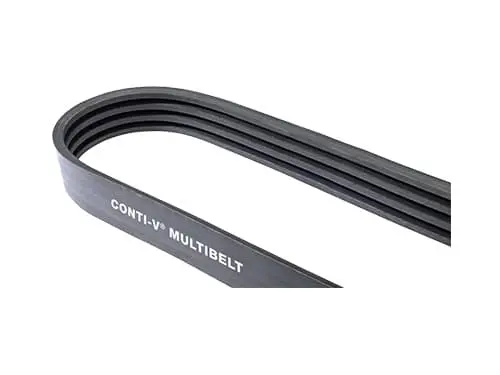

Power belts
Product description:
ContiTech’s composite V-belts consist of several individual belts that form a unit due to a common cover plate. This significantly reduces vibrations from the individual belts. Composite V-belts are particularly suitable for drives with highly variable loads.
Proven areas of application:
- Agriculture
- Stone buckets
- Asphalt milling

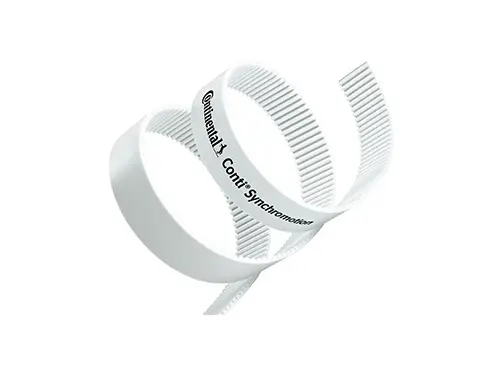

Conti Synchromotion
Product description:
The Conti Synchromotion PU timing belt, offers great flexibility for your application due to flexible lengths of 1,500 – 14,500 mm in all common profiles. The Synchomotion is perfect suited for your applications in the transport and drive sector and gives you more options and flexibility in the design of your applications.
Proven areas of application:
- Packaging machines
- Filling plants
- Mechanical engineering
- Industrial applications
