DURBAL Rod Ends und Spherical Plain Bearings
Rely on rod ends from DURBAL when it comes to maximum precision and reliability in your applications. Our rod ends offer first-class quality and durability – perfect for demanding industrial applications. Whether in mechanical engineering, in the automotive industry or in demanding applications: DURBAL rod ends ensure optimum mobility and load-bearing capacity.
Efficiency and safety in every movement
DURBAL has stood for the highest quality, reliability and precision since 1979. We permanently stock a large number of DURBAL rod ends and spherical plain bearings at our headquarters in Hamburg. We have been working in partnership with DURBAL for many decades and support DURBAL in all matters relating to northern Germany.
We also offer you fully assembled system rods customised to your requirements.
Save time and money with customised special solutions from DURBAL. These include, for example, plain bearings that are integrated directly into your component. This saves you assembly costs and reduces the number of items that need to be procured.
Applications
- Railway technology
- Linear technology
- Packaging machines
- Agricultural engineering
- Shipbuilding and crane construction
- Automation and robotics
- Conveyor technology and logistics
- Hydraulics and pneumatics industry
- Renewable energies
- Medical technology
- Pharmaceutical industry
Benefits and strenghts
- First-class quality
- Very high wear resistance
- Premium and Classic Line ‘Made in Germany’
- Specially hardened raceways in the Premium Line and injected PTFE in the Classic Line increase durability
Do you have any questions?
If you have any application or product-specific questions, please contact our specialists from the technical department. We will be happy to help you.
Product overview
DURBAL Rod ends
- According to DIN ISO 12240-4
- Basic Line, Classic Line or Primium Line version
- Numerous ball bearing variants
- Premium Line: roller bearings, customised system solutions
- Classic Line: plain bearings, customised system solutions
- Basic Line: standard rod ends, hydraulic rod ends
DURBAL Spherical plain bearing
- According to DIN ISO 12240-1
- Basic, Classic Line or Primium Line version
- Standardised and ready to install
- The proven Durbal technology as a spherical plain bearing
- Available as Premium, Classic and Basic Line
DURBAL System linkages
- Can be combined with rod ends and spherical plain bearings
- Basic, Classic Line or Primium Line version
- Standardised and ready to install
- Customised solutions to suit your production
- Available in all Durbal product lines

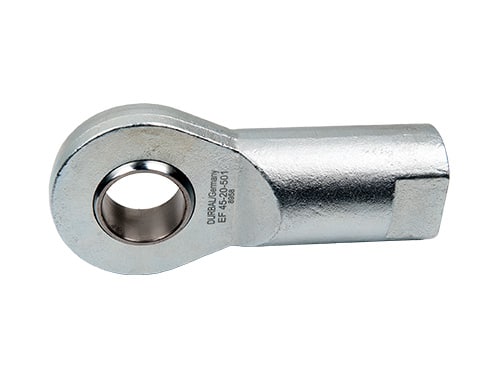

DURBAL Rod ends
Product description:
DURBAL rod ends are used for the transmission of static and dynamic forces in conjunction with swivelling, tilting and rotating movements. Our rod ends are available in both roller bearing and plain bearing versions.
Premium Line:
Low-maintenance high-performance rod ends with integrated barrel or self-aligning ball bearings of types: BRTM, BRTF, WLT, BRM, BRF, PM, and PF
A special heat treatment process lends the rod ends a raceway hardness corresponding to that of rolling bearings and at the same time ensures high stability under changing loads.
Classic Line:
Maintenance-free high line rod ends with integrated plain bearing with DURBAL-GLIDE* of types: BEM, BEF, EM, EF, BEMA, BEFA, EMA and EFA
Maintenance-required high line rod ends with fixed plain bearing of types: BEMN, BEFN, EMN and EFN
*DURBAL-GLIDE:
A special, glass fibre-reinforced plastic sliding shell that contains PTFE, among other things, to minimise friction. The design ensures absolute freedom from maintenance and leads to industry-leading freedom from play. The plastic has the unique secondary property of absorbing and harmlessly enclosing any foreign bodies that may penetrate, which minimises the likelihood of your application failing.
Basic Line:
Maintenance-free and maintenance-requiring standard rod ends, hydraulic rod ends and accessories.
The Basic Line rod ends are available in the sliding pairings:
- Steel / bearing brass-PTFE composite material
- Steel / steel
- Steel / bearing brass

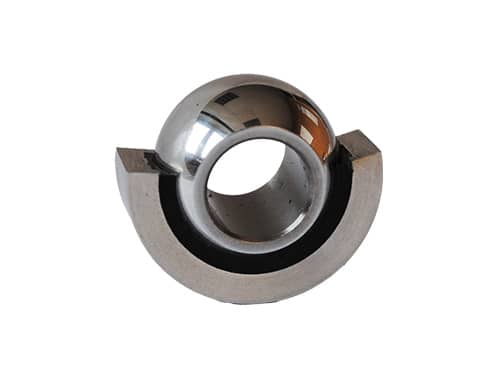

DURBAL Spherical plain bearing
Product description:
DURBAL spherical plain bearings are ready-to-install and standardised machine elements that enable spatial adjustment movements. They transmit static and dynamic forces in conjunction with swivelling, tilting and rotating movements. Our spherical plain bearings are available in both rolling bearing and plain bearing designs.
Premium Line:
Low-maintenance high-performance spherical plain bearings with integrated barrel or self-aligning ball bearing types: WLK and WLT
A special heat treatment process gives the spherical plain bearings a raceway hardness equivalent to that of rolling bearings and at the same time ensures high stability under varying loads.
Classic Line:
Maintenance-free high line spherical plain bearings with integrated plain bearing with DURBAL-GLIDE* of types: GLK, GLKS, GLE and GLG
*DURBAL-GLIDE:
A special, glass fibre-reinforced plastic sliding shell that contains PTFE, among other things, to minimise friction. The design ensures absolute freedom from maintenance and leads to industry-leading freedom from play. The plastic has the unique secondary property of absorbing and harmlessly enclosing any foreign bodies that may penetrate, which minimises the likelihood of your application failing.
Basic Line:
Maintenance-free and maintenance-requiring standard spherical plain bearings
The Basic Line spherical plain bearings are available in the following sliding pairings:
- Steel / bearing brass-PTFE composite material
- Steel / steel
- Steel / bearing brass

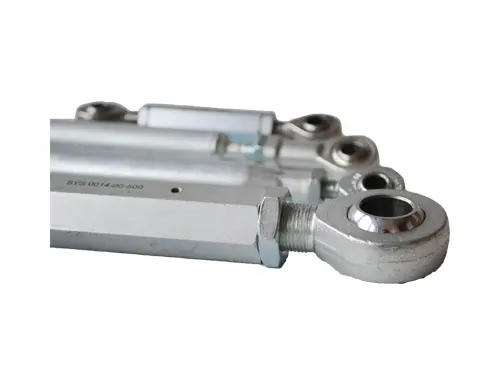

DURBAL System linkages
Product overview:
Durbal system linkages and special solutions can be customised to your specific application.
Please contact us and we will check the feasibility of your requirements.
