Shock Absorber CAVOFLEX®

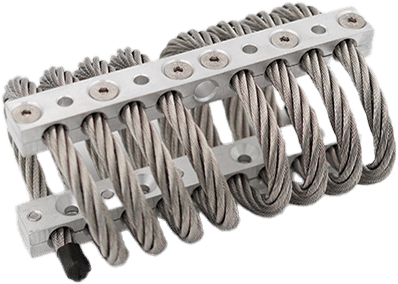

CAVOFLEX® wire rope isolators are the optimal solutions for demanding shock and vibration-resistant mountings, especially when standards from the transport, railway and defence sectors have to be met.
For shock and impact-resistant storage
The CAVOFLEX® all-metal dampers are available in a wide range of several standard versions. Depending on the application and requirements, all elements are produced in our own production facilities. Only stainless steel cables are used for our CAVOFLEX® wire rope spring elements. The particular advantages of these elements compared to conventional steel springs or elastomer dampers result from their high deformation capacity, vibration damping and with a very long service life.
Application
- Naval shipbuilding and defence
- Armoured vehicles
- Transport technology
- Seismic zone
Benefits and strenghts
- Shock-resistant with high damping
- High temperature and media resistance
- Compact design
Do you have any questions?
If you have any application or product-specific questions, please contact our specialists from the technical department. We will be happy to help you.
Product overview

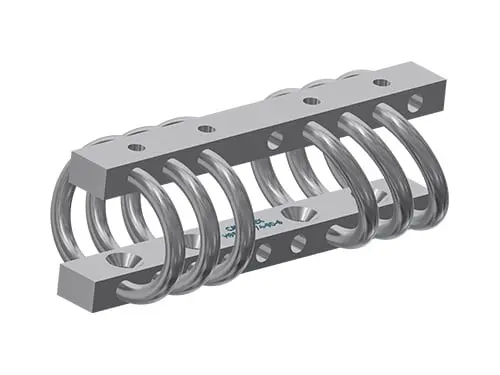

TYPE H
This type is our standard wire rope damper and can be used universally. The wire is wound in a spiral shape.
- Load range: 1 – 2.500 kg
- Stiffness: 4:1
- Loadable in all directions
- Electrically conductive

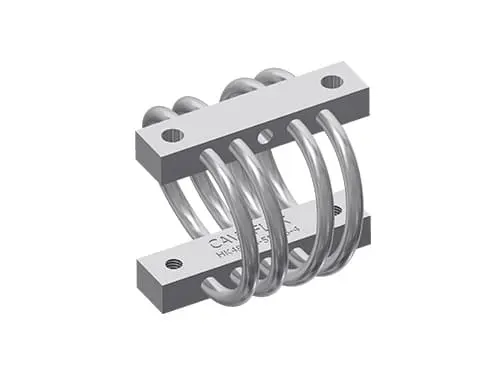

TYPE HK
This type is constructed in the same way as
type H. Due to the shorter length, the damper is space-saving but can also be used universally.
- Load range: 1 – 1.000 kg
- Stiffness: 4:1
- Loadable in all directions
- Electrically conductive

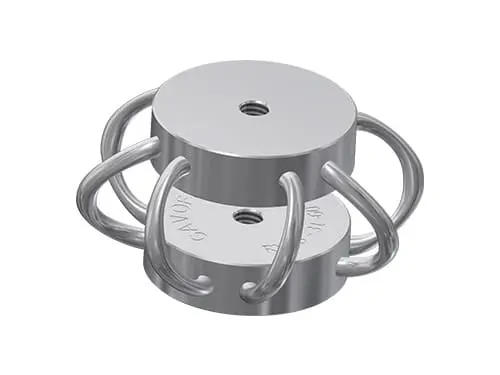

TYPE RX
In this type, wire ropes connect two discs, with the ropes clamped into the discs. The spring elements are compatible with rubber buffers.
- Load range: 0.2 – 50 kg
- Stiffness: 3:1
- Loadable in all directions
- Not electrically conductive

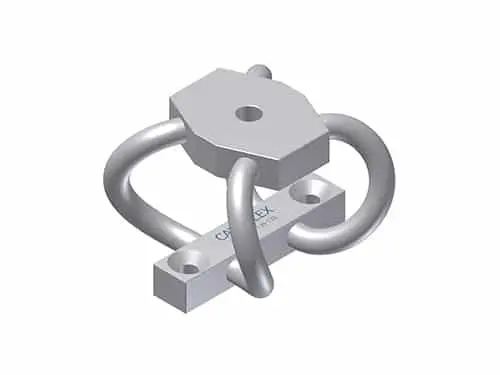

TYPE SX
With this type, two bars are connected by wire ropes in a star shape. The ropes are assembled by crimping the bars.
- Load range: 0.2 – 50 kg
- Stiffness: 3:1
- Loadable in all directions
- Not electrically conductive

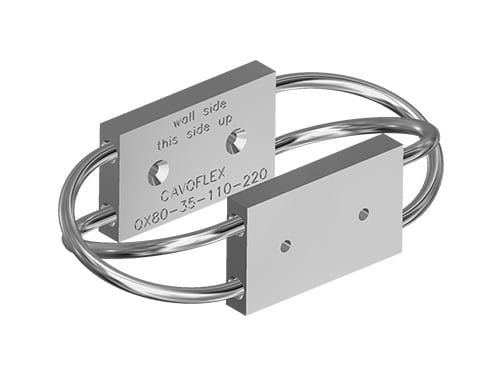

TYPE QX
This type is specially designed for wall mounting of narrow cabinets or equipment..
- Load range: 4 – 6.5 kg
- Stiffness: 4:1
- Not loadable in all directions
- Not electrically conductive

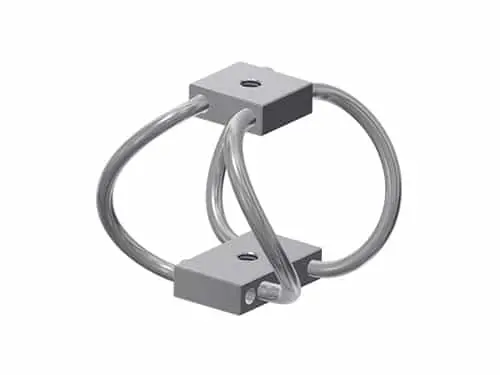

TYPE TX
This type is ideal for small loads. Two bars are connected by wire ropes in a star shape.
- Load range: 0.05 – 2 kg
- Stiffness: 2:1
- Not loadable in all directions
- Electrically conductive
