Shock Absorber rubber-metal
Shocks involve sudden changes in position, speed, and acceleration unlike continuous vibrations. Our elements support static loads from 10 to 3,000 kg, providing flexible and reliable solutions for almost any application with
shock requirements.
Proven protection against shock and vibration
WILLBRANDT elastomer shock dampers absorb incoming shock energy as spring energy and efficiently convert it into heat.
At the same time, they provide excellent structure-borne sound insulation and allow spring deflections of over 100 mm.
Due to their outstanding damping, vibration amplitudes remain low even when passing through unavoidable resonance point
ensuring maximum safety and efficiency of your equipment.
Application
- Naval shipbuilding and defence
- Armoured vehicles
- For high acoustic requirements
Benefits and strengths
- Shock absorption
- Protection of sensitive components
- Customised shock calculations by experienced employees
Do you have any questions?
If you have any application or product-specific questions, please contact our specialists from the technical department. We will be happy to help you.
Product overview

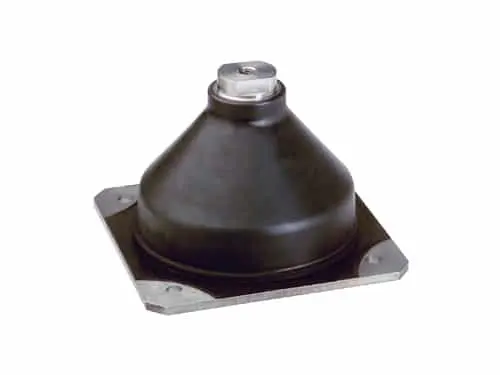

TYPE SES 1010
- Load range: 15 – 175 kg

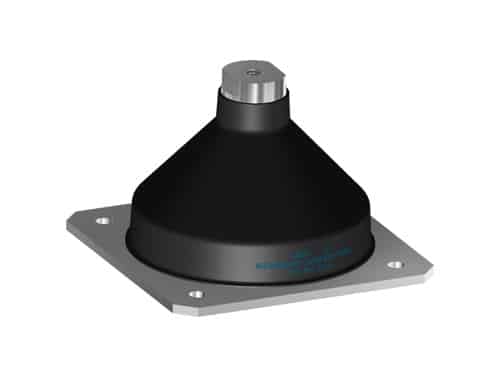

TYPE SES 1020
- Load range: 7 – 90 kg

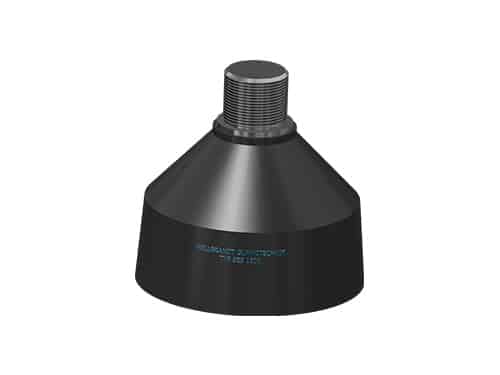

TYPE SES 1500
- Load range: 90 – 390 kg

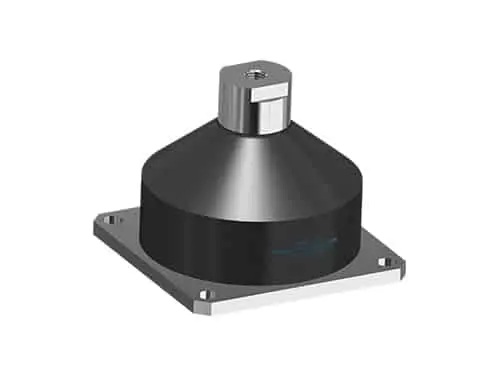

TYPE SES 2000 / 2000D
- Load range: 20 – 560 kg

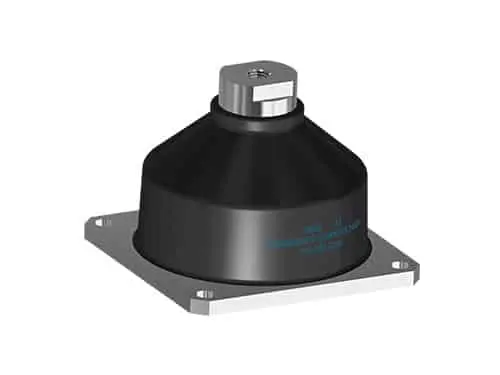

TYPE SES 2100
- Load range: 150 – 800 kg

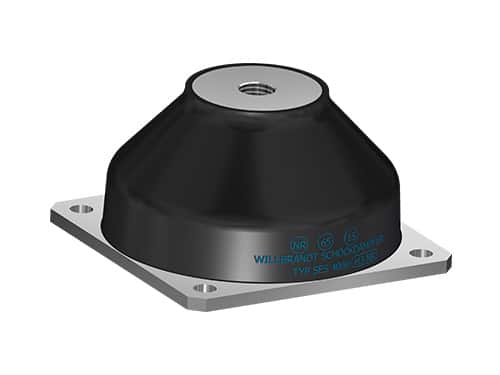

TYPE SES 4000
- Load range: 95 – 1.320 kg

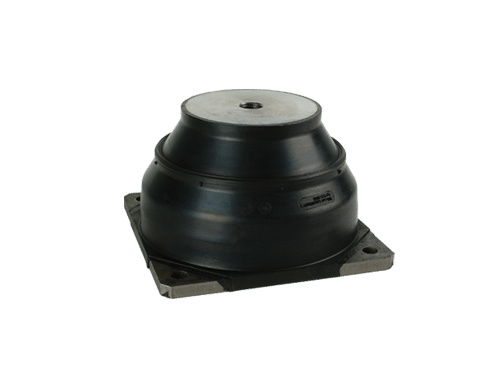

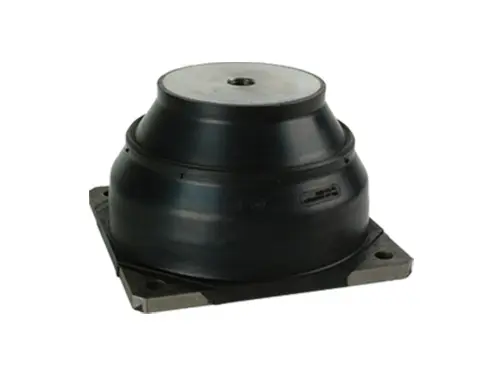

TYPE SES 5010
- Load range: 220 – 3.000 kg
TYPE SES 6000
- Load range: 500 – 25.000 kg

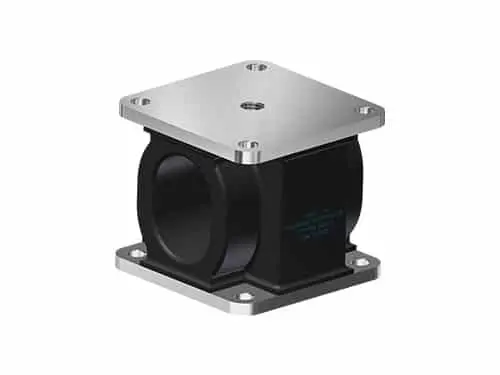

TYPE HFSE 120 / 105
- Load range: 35 – 520 kg

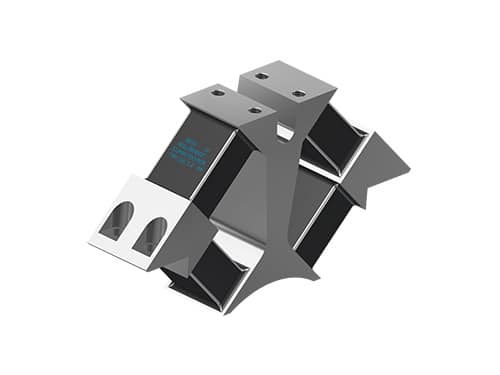

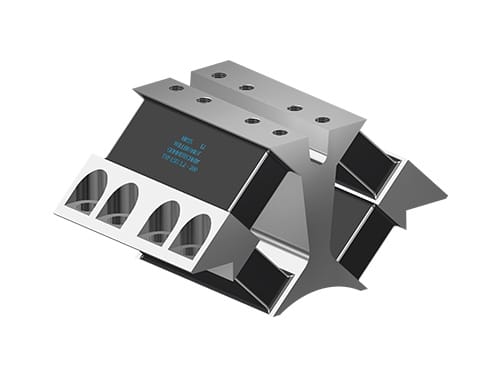

TYPE LSG 3.2 / 64 mm
- Load range: 35 – 460 kg

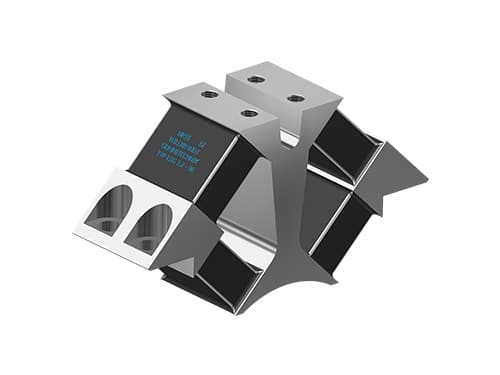

TYPE LSG 3.2 / 96 mm
- Load range: 35 – 460 kg
TYPE LSG 3.2 / 200 mm
- Load range: 40 – 900 kg

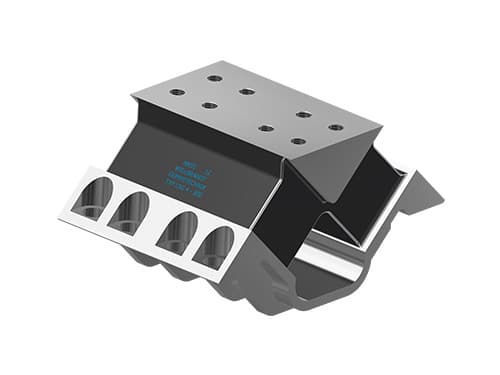

TYPE LSG 4
- Load range: 110 – 2.000 kg

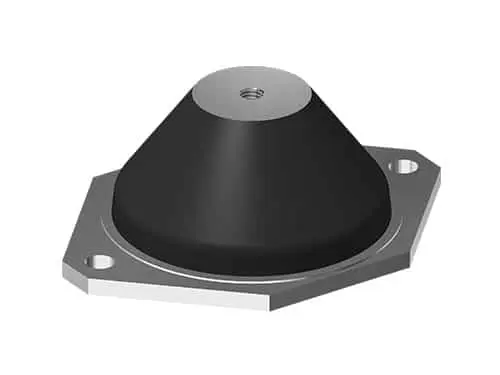

TYPE KE 125
- Load range: 5 – 100 kg

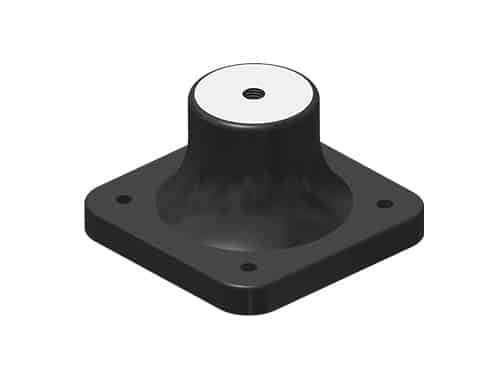

TYPE GB 530
- Load range: 6 – 600 kg
TYPE SEG70
- Load range:14 – 1.200 kg

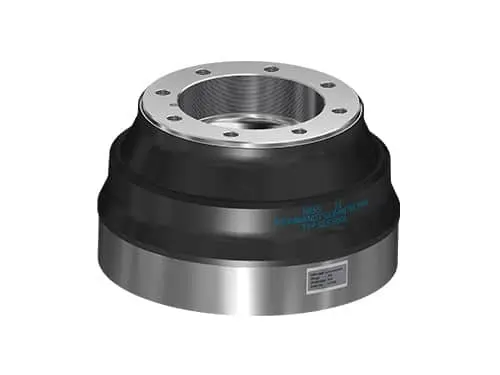

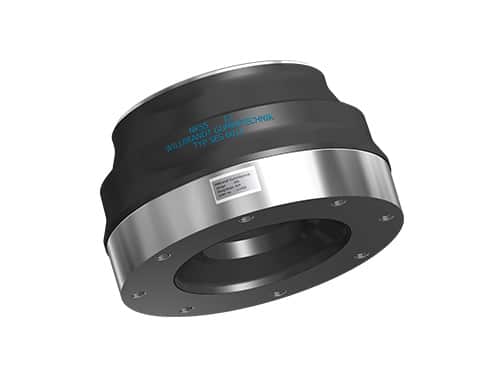

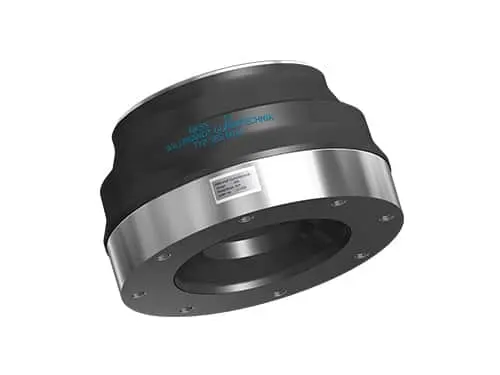

INSTRUMENT MOUNT TYPE SES 6000
Product description:
The type SES 6000 was specially developed for particularly heavy loads. Load capacities of up to 25,000 kg can be accommodated.
SES series:

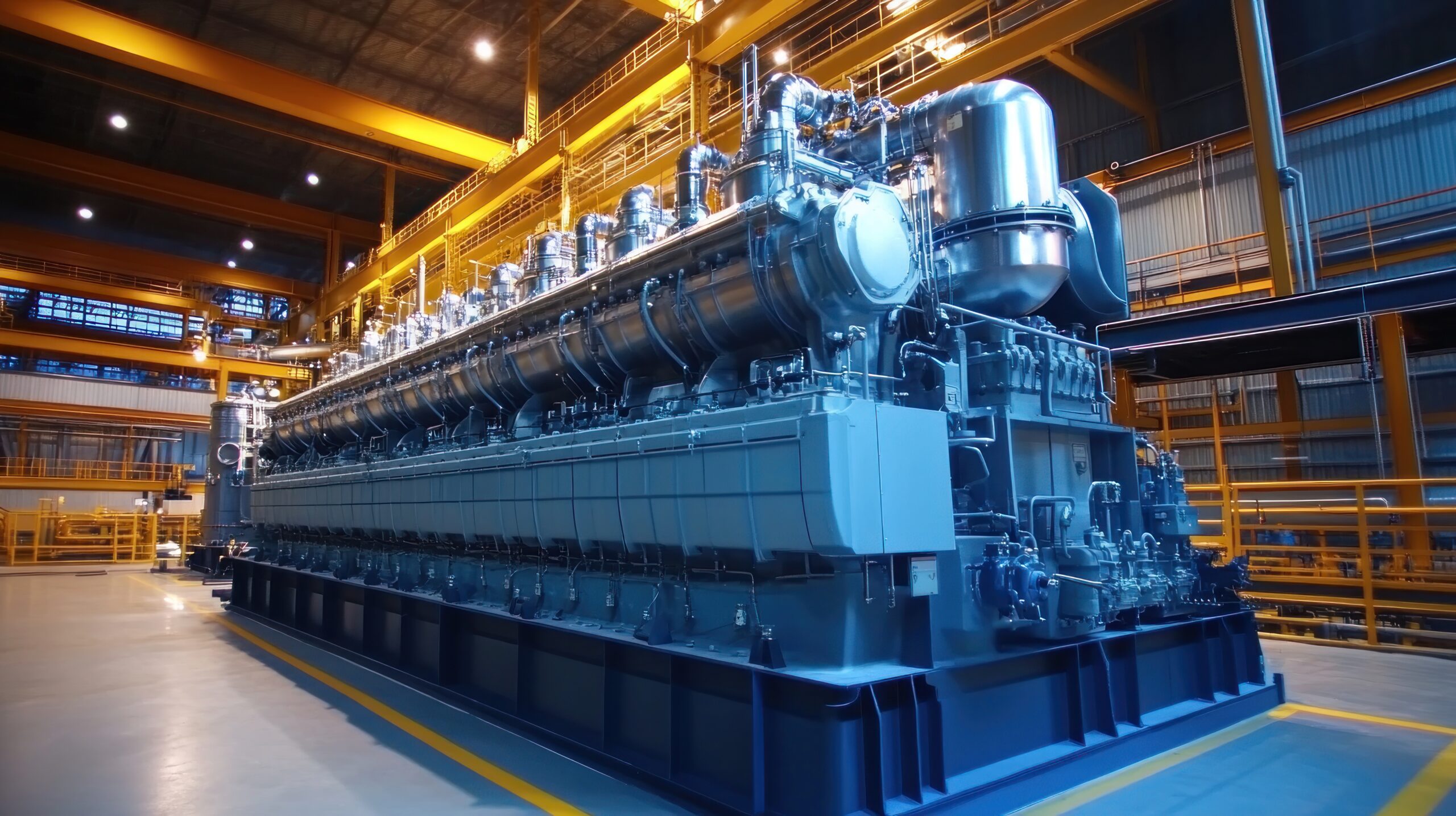

- GenSets
- Electric motors
- Heavy marine equipment
- Storage of platforms

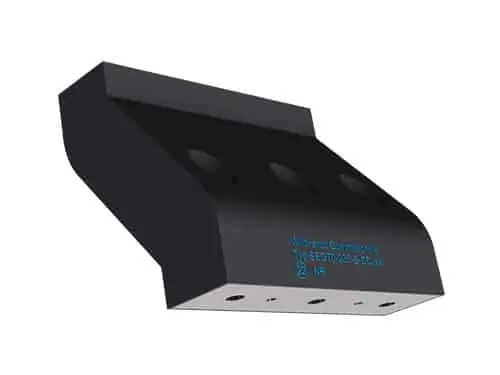

Schockdämpfer SEG 70
Product description:
The patented SEG70 marine bearing combines outstanding flexibility and stability in use with the smallest possible construction volume. With natural frequencies between 3.5 and 7 Hz, it is possible to reduce the residual shock to less than 10 g.
Series SEG 70:
- Shock paths up to 150 mm possible
- Two design variants: Double and single
- Can be used as a load carrier or head holder
- Lengths 125 mm or 235 mm
- Optionally with additional plates
