Combination Element
WILLBRANDT has a wide range of different types of combination elements in an equally wide range of dimensions on stock. Please send your enquiry.
Small and large weights simply installed
A wide range of different designs means you always have the best possibleelastic support.
Applications
- General mechanical engineering
- Logistics and warehousing
- Industry and manufacturing
- Special vehicles
- Pumps
Benefits and strengths
- Increased work safety
- Efficient and organised mounting
- Suitable also low weights
- Product variety
- Cost efficient
Do you have any questions?
If you have any application or product-specific questions, please contact our specialists from the technical department. We will be happy to help you.
Productoverview

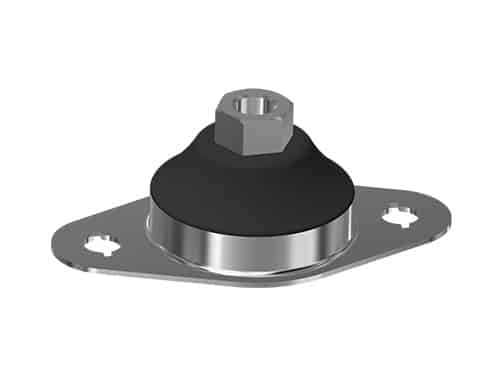

Hat element
- For loads from 5 to approx. 220 kg
- Equal rigidity in vertical and transverse direction

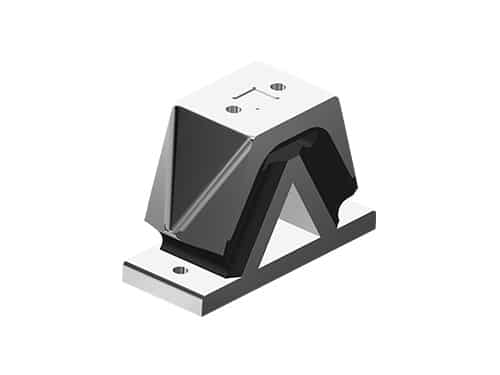

Heavy roof mount
- Versatile in use
- Load support in Z-direction
- Tear-off protection is possible

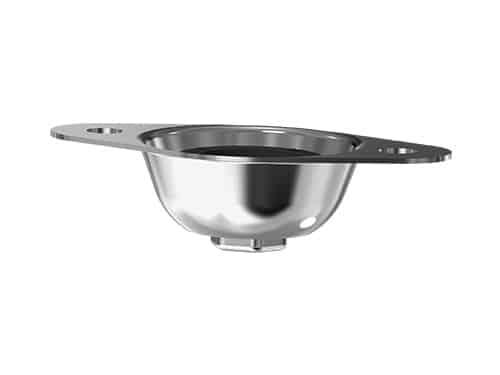

Bell mounts
- For applications in which masses are suspended
- Tear-resistant elements for absorbing static tensile forces

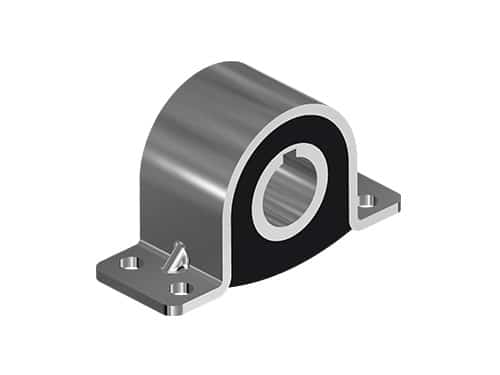

Torsion mounts
- For shaft ends
- Elastic bearing
- Axial, radial, torsional and cardanic movement

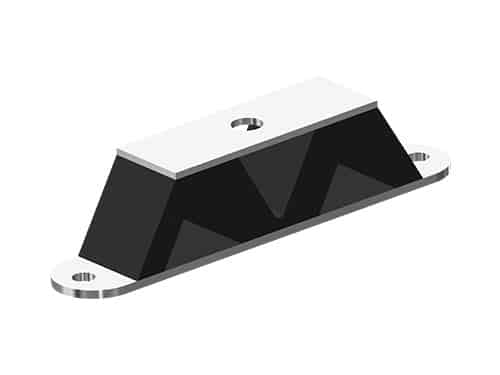

Shear mounts
- Suitable for the storage of sensitive instruments, measuring and display devices, for example
- For storing small masses with low natural vibration coefficients up to approx. 25 kg
Torsion bushes
- Elastic and shock-free bearing support for shafts
- Suitable for axial loads with small misalignments

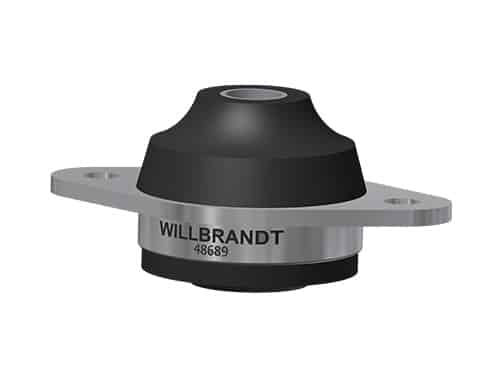

Flange mounts
- Provides a robust bearing for medium loads up to approx. 240 kg
- Tear-out resistance guaranteed
- Stop discs are optionally available as accessories

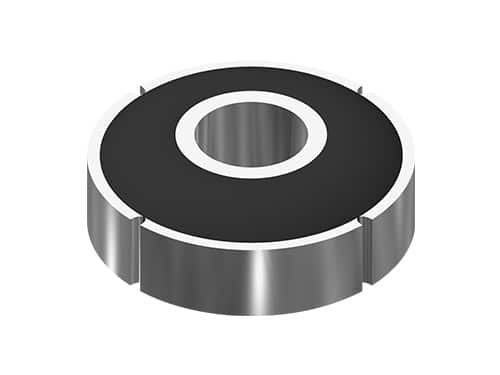

Ring mounts
- Is pressed into a bore and can elastically support a shaft
