elBe – Boat Engine Mountings
For applications with smaller boat engines, we have developed elBe
cup elements: four sizes with different stiffness levels, available in both standard and stainless steel. Spindles are also available for each type.
elBe –Boat engine mountings
Our marine engine mounts provide outstanding isolation, especially for mounting generators, drive units, and equipment operating at around 25 Hz (1,500 RPM). Axial shocks are effectively absorbed, and lateral movements are controlled to ensure maximum stability. With integrated tear-off protection, the mounts are highly reliable. Depending on the version, they support loads of 11 to 880 kg per mounting point.
Applications
- Boat engines
- Construction machinery
- Gate and door applications
- Different engine types
Benefits and strengths
- Compact shape
- Simple design
- Long service life
- Maintenance-free
Do you have any questions?
If you have any application or product-specific questions, please contact our specialists from the technical department. We will be happy to help you.
Product overview

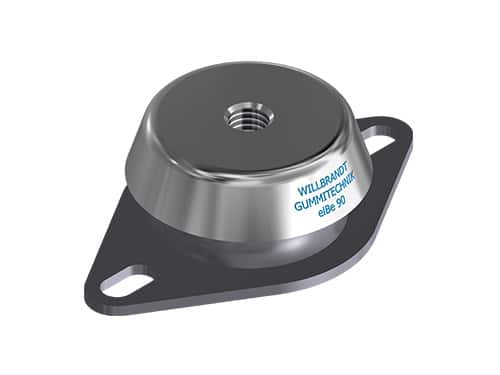

TYP 90
- Natural frequency between 9 – 15 Hz
- Bearing load from 11 – 83 kg

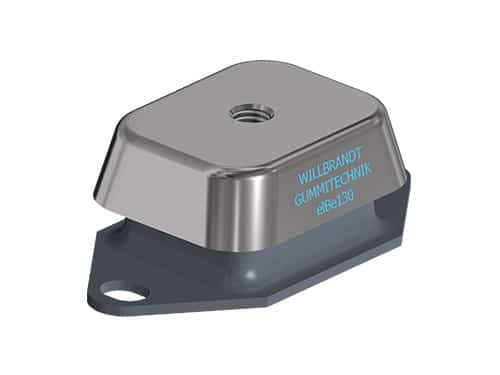

TYP 130
- Natural frequency between 8 – 12 Hz
- Bearing load from 17 – 96 kg

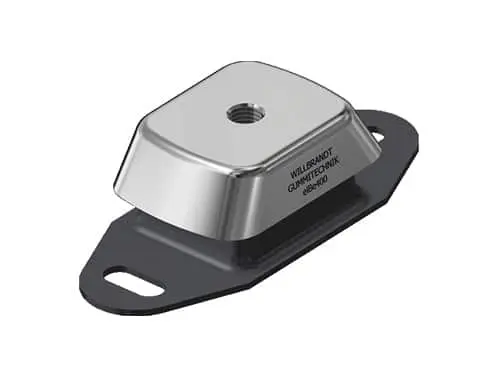

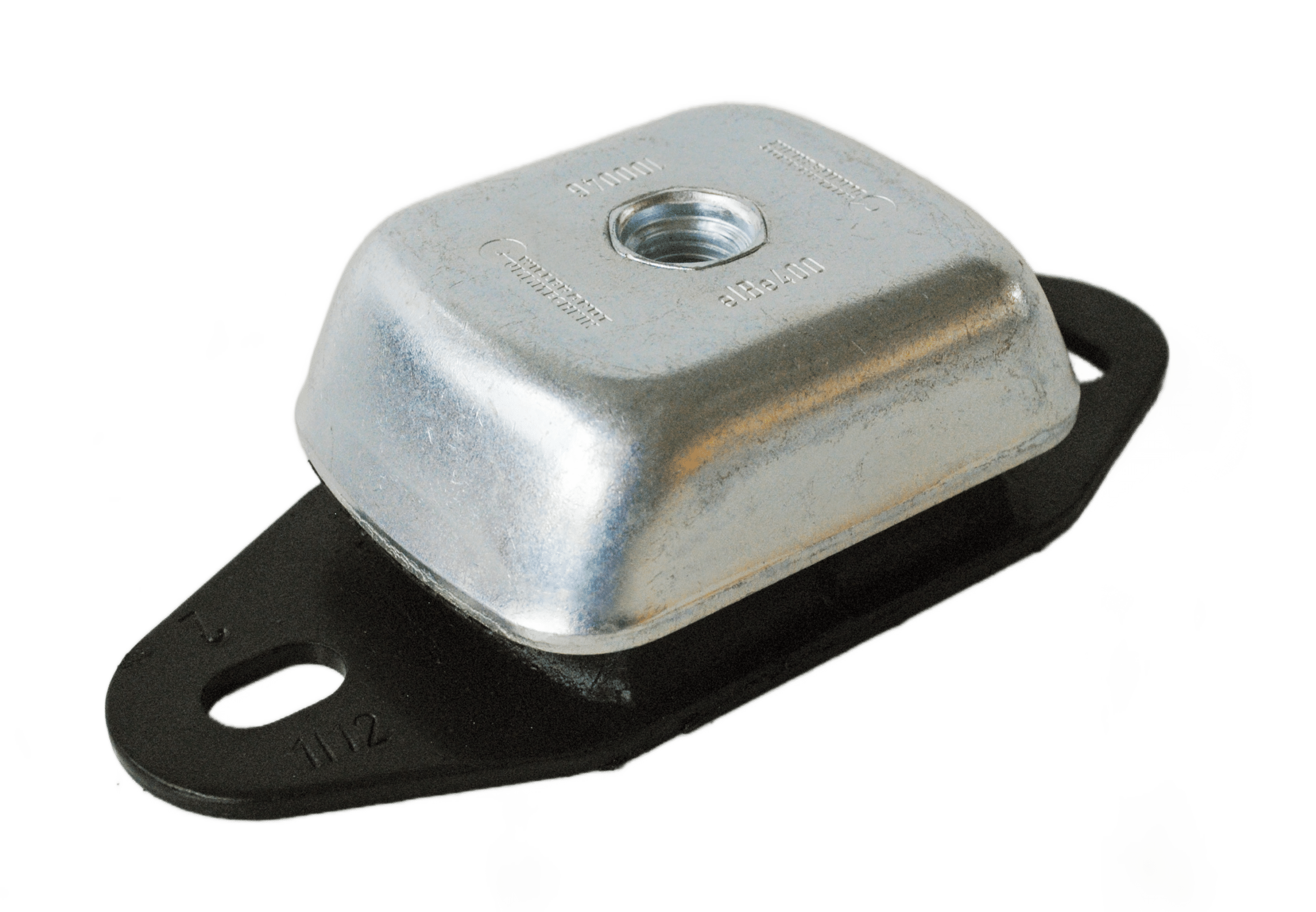

TYP 400
- Natural frequency between 7 – 13 Hz
- Bearing load from 30 – 475 kg
- Available in stainless steel

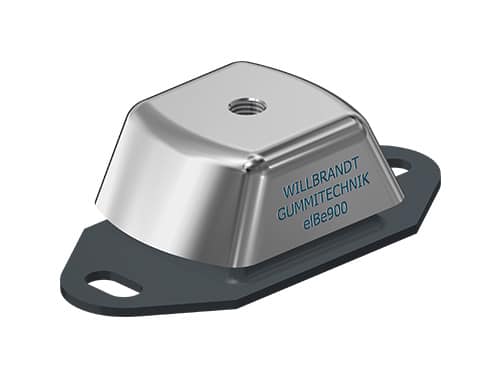

TYP 900
- Natural frequency between 8 – 13 Hz
- Bearing load from 90 – 880 kg

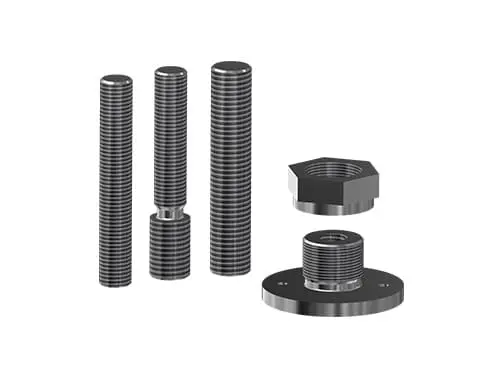

Accessories
- Levelling spindles
- Fine thread height adjustment
- Washers
