Stainless Steel Expansion Joints
WILLBRANDT supplies stainless steel expansion joints or metal expansion joints made from a stainless steel corrugated bellows with connection ends made from steel or stainless steel. The available designs include exhaust gas expansion joints, axial expansion joints, lateral expansion joints or angular expansion joints.
For high pressures and temperatures
Stainless steel expansion joints are used wherever high pressures or temperatures are present or where aggressive media flow through the expansion joint. They compensate for thermal expansion, mechanical vibrations or subsidence in pipework systems. We have an extensive product range and can therefore offer the right expansion joint for a wide variety of applications. The majority of these expansion joints are produced to order, but a selection of standard expansion joints is also available from stock.
Applications
- Piping systems
- Pumps and motors
- Building settlement
Benefits and strenghts
- High media resistance
- High temperature resistance
- Flexibility and manoeuvrability
- Durability
Do you have any questions?
If you have any application or product-specific questions, please contact our specialists from the technical department. We will be happy to help you.
Phone +49 40 540093-0
info@willbrandt.de
Product overview
TYP 200 / TYP 201 (with internal sleeve)
Exhaust gas expansion joint with weld-on ends, in three versions
- DN range: 50 – 2200 depending on version
- Pressure rating: PN 1

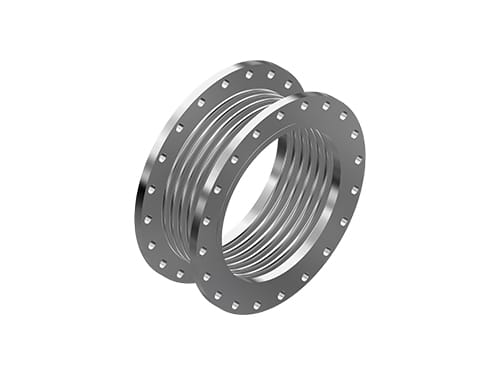

TYP 202 / TYP 203 with internal sleeve)
Exhaust gas expansion joint with swivelling loose flanges, in three versions
- DN range: 50 – 2200 depending on version
- Pressure rating: PN 1
TYP 204 / TYP 205 (with internal sleeve)
Flue gas expansion joint with fixed flanges, in three versions
- DN range: 50 – 2200 depending on version
- Pressure rating: PN 1
TYP 206 / TYP 207 (with internal sleeve)
Axial expansion joint with weld-on ends, single layer
- DN range: 15 – 50
- Pressure rating: PN 16

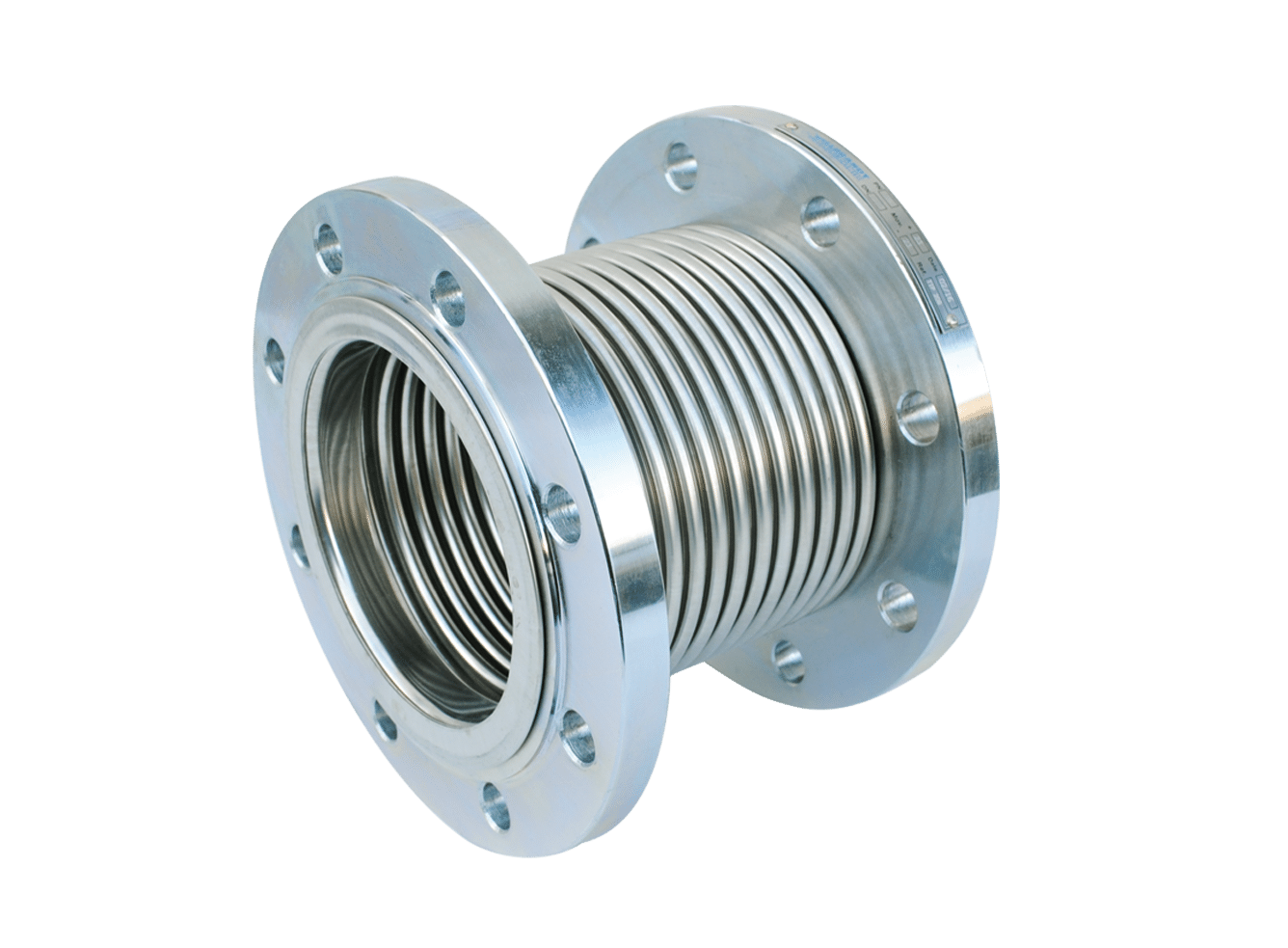

TYP 208 / TYP 209 (with internal sleeve)
Axial expansion joint with swivelling loose flanges, single layer
- DN range: 200 – 250
- Pressure rating : PN 10
- DN range: 15 – 150
- Pressure rating: PN 16

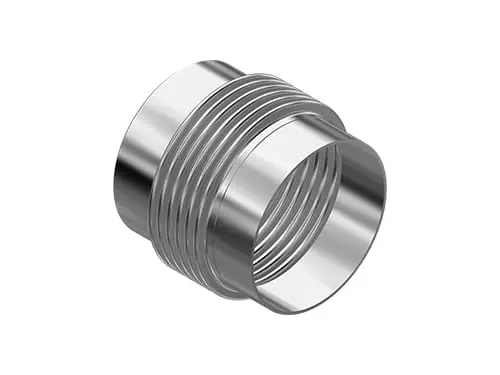

TYP 210 / TYP 211 (with internal sleeve)
Axial expansion joint with weld-on ends
- DN range: 50 – 2200 depending on pressure rating
- Pressure rating: PN 2.5 – PN 40
TYP 212 / TYP 213 (with internal sleeve)
Axial expansion joint with swivelling loose flanges
- DN range: 50 – 220 depending on pressure rating
- Pressure rating: PN 2.5 – PN 25
TYP 214 / Typ 215 (with internal sleeve)
Axial expansion joint with fixed flanges
- DN range: 50 – 2200 depending on pressure rating
- Pressure rating: PN 2.5 – PN 25

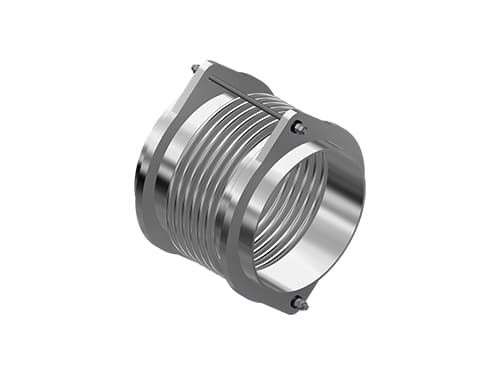

TYP 220 / TYP 221 (with internal sleeve)
Lateral expansion joint with weld-on ends and tie rods, in two versions
- DN range: 50 – 500 depending on design and pressure rating
- Pressure rating: PN 6 – PN 63
TYP 222 / TYP 223 (with internal sleeve)
Lateral expansion joint with loose flanges and tie rods, in two versions
- DN range: 50 – 500 depending on design and pressure rating
- Pressure rating: PN 6 – PN 25
TYP 224 / TYP 225 (with internal sleeve)
Lateral expansion joint with fixed flanges and tie rods, in two versions
- DN range: 50 – 500 depending on pressure rating
- Pressure rating: PN 6 – PN 25

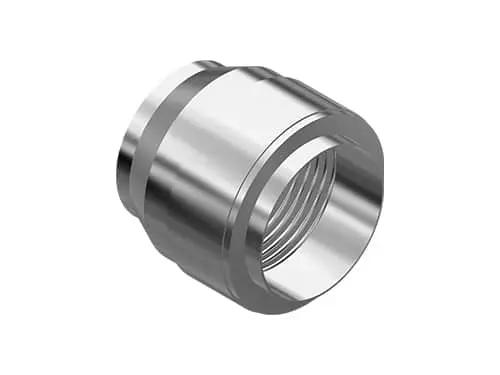

TYP 228 (One Step) / TYP 229 (with internal sleeve)
District heating compensator
- DN range: 40 – 600 depending on pressure rating
- Pressure rating: PN 10 – PN 40

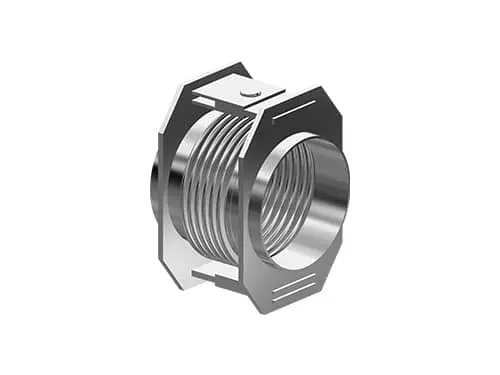

TYP 230 / TYP 231 (with internal sleeve)
Angular expansion joint with weld-on ends and simple bracing
- DN range: 400 – 2200 depending on pressure rating
- Pressure rating: PN 2.5 – PN 63

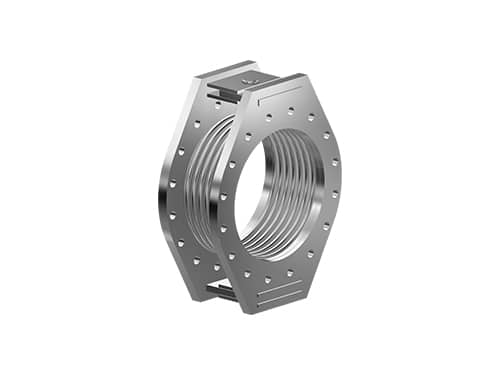

TYP 232 / TYP 233 (with internal sleeve)
Angularkompensator mit Festflanschen und einfacher Gelenkverspannung
- DN range: 50 – 600 depending on pressure rating
- Pressure rating: PN 6 – PN 25

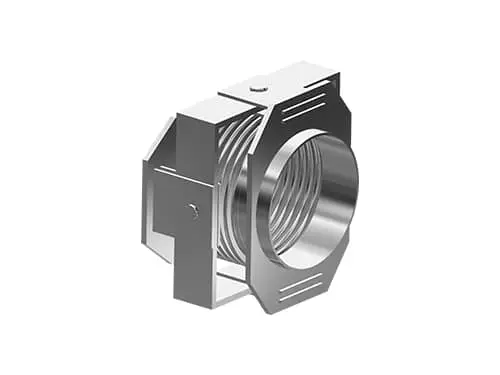

TYP 234 / TYP 235 (with internal sleeve)
Angular expansion joint with fixed flanges and simple joint bracing
- DN range: 400 – 2200
- yes according to pressure rating
- Pressure stage: PN 2.5 – PN 63

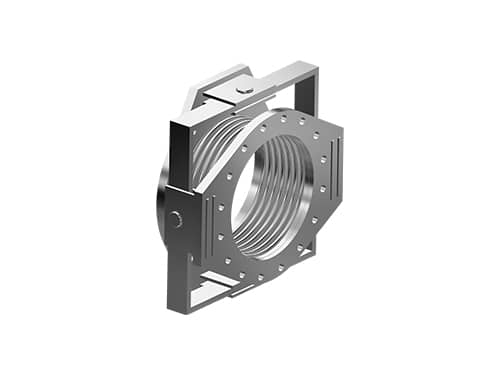

TYP 236 / TYP 237 (with internal sleeve)
Angular expansion joint with fixed flanges and universal joint
- DN range: 50 – 800 depending on pressure rating
- Pressure rating: PN 6 – PN 25

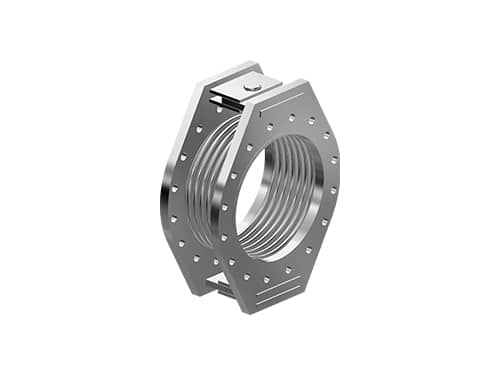

TYP 238
Angular expansion joint with loose flanges and simple joint tensioning
- DN range: 50 – 800depending on pressure rating
- Pressure rating: PN 6 – PN 25

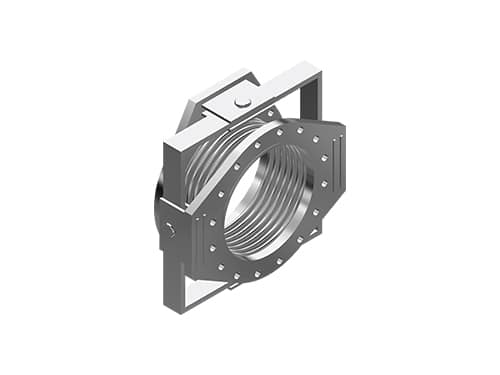

TYP 239
Angular expansion joint with loose flanges and universal joint
- DN range: 50 – 800depending on pressure rating
- Pressure rating: PN 6 – PN 25

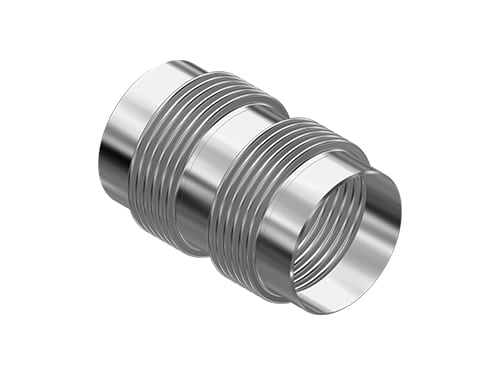

TYP 240 / TYP 241 (with internal sleeve)
Universal expansion joint with weld-on ends
- DN range: 50 – 2200
- Pressure rating: PN 2.5
TYP 242 / 243 (with internal sleeve)
Universal expansion joint with swivelling loose flanges
- DN range: 50 – 2200
- Pressure rating: PN 2.5

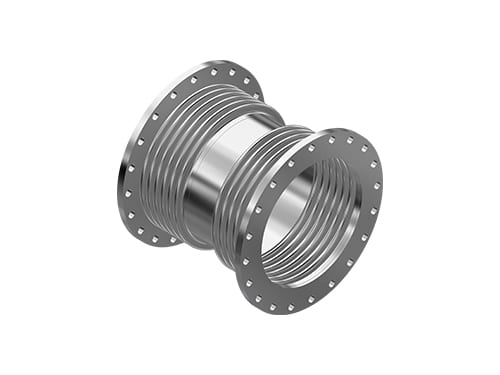

TYP 244 / TYP 245 (with internal sleeve)
Universal expansion joint with fixed flanges
- DN range: 50 – 2200
- Pressure rating: PN 2.5

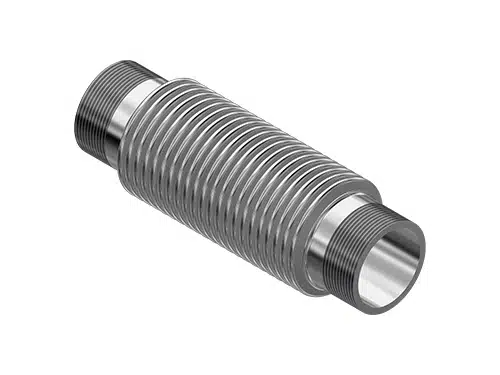

TYP 246
Axial expansion joint with threaded connection, in two versions
- DN-Bereich: 50 – 2200
- Druckstufe: PN 2,5

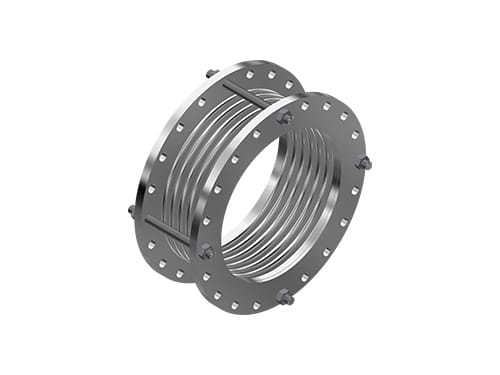

TYP 250 / 251 (with internal sleeve)
Extension piece
- DN range: 40 – 1000

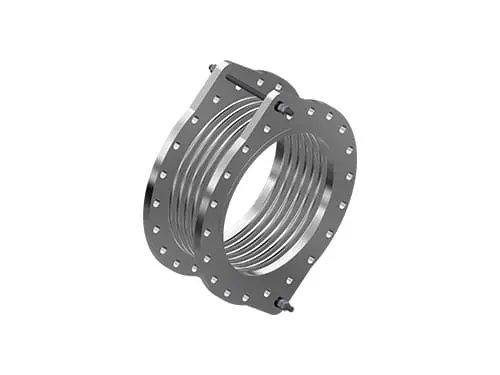

TYP 262 / TYP 263 (with internal sleeve)
Vibration compensator with loose flanges
- DN range: 50 – 300
- Pressure rating: PN 16
TYP 264 / TYP 265 (with internal sleeve)
Vibration compensator with fixed flanges
- DN range: 50 – 300
- Pressure rating: PN 16

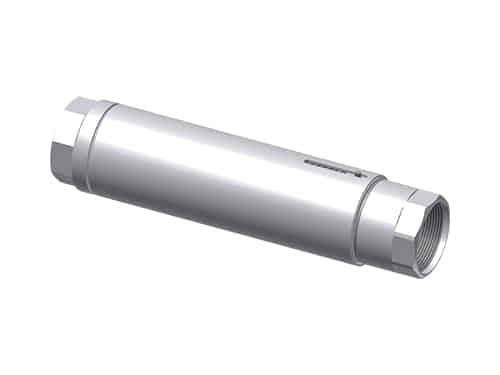

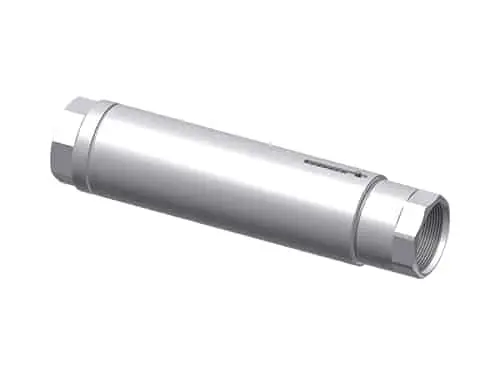

TYP 270
Axial expansion joint with threaded connection
- DN range: 15 – 50
- Pressure rating: PN 16

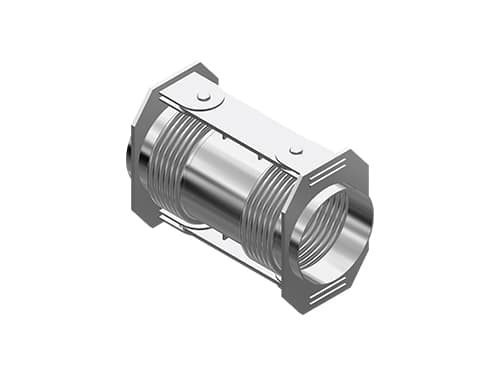

TYP 280 / TYP 281 (with internal sleeve)
Lateral expansion joint with weld-on ends
- DN range: 600 – 2000 depending on pressure rating
- Pressure rating: PN 6 – PN 63

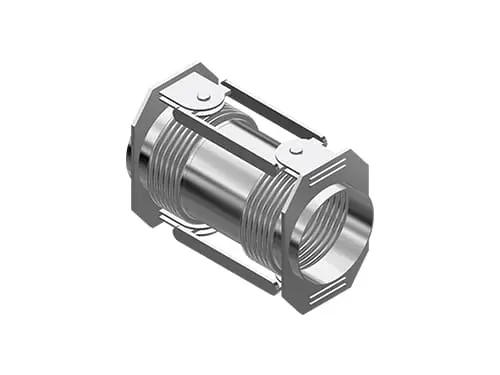

TYP 286 / TYP 287 (with internal sleeve)
Lateral expansion joint with weld-on ends and universal joint
- DN range: 600 – 2000 depending on pressure rating
- Pressure rating: PN 6 – PN 63

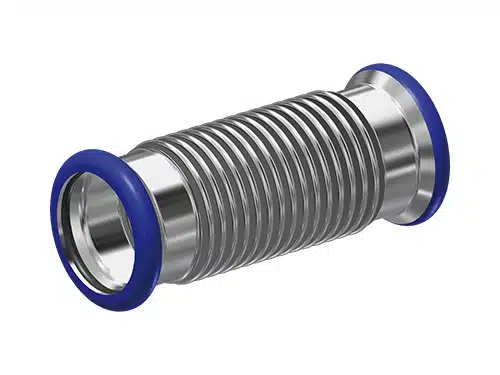

TYP 290
Axial expansion joint with pressfitting connection piece
- DN range: 15 – 50
- Pressure rating: PN 16
