Expansion Joints Rubber
WILLBRANDT has a wide range of different rubber expansion joints made of EPDM, IIR, NBR, CSM and FPM. They are manufactured as universal expansion joints, lateral expansion joints, angular expansion joints or special designs such as pressure-relieved expansion joints or safety expansion joints.
Rubber expansion joints – the all-rounders
Rubber expansion joints are highly versatile, have a noise-reducing effect and protect a pipework system from overloads caused by expansion, vibration and subsidence. We can select the right expansion joint for a wide range of applications from our extensive product range. Most of these are available from stock or are customised to your specifications
Applications
- Industrial plants
- Power stations
- Chemical plants
- Water technology
- Food industry
- Engine technology
- Pipeline construction
Benefits and strenghts
- High movement absorption with short overall length
- Vibration reduction
- Structure-borne noise reduction
- Cost-efficient
- Durability
Do you have any questions?
If you have any application or product-specific questions, please contact our specialists from the technical department. We will be happy to help you.
Phone +49 40 540093-0
info@willbrandt.de
Product overview
TYP 39

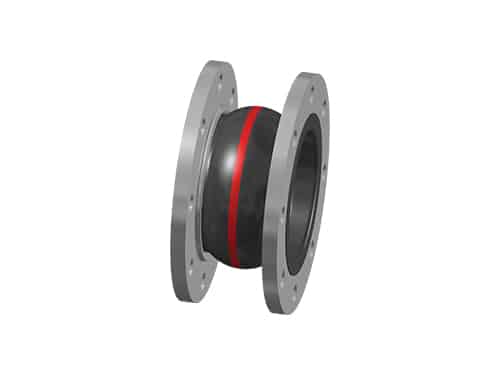

Hand-wound, flat corrugated rubber expansion joint with variable length
- DN range: 50 – 1000
- Length (mm): variable from 150
- Pressure range (bar): max. 10
- Areas of application: Industrial plants. Repair/replacement
- PTFE lining optionally available
- not durable
TYP 40

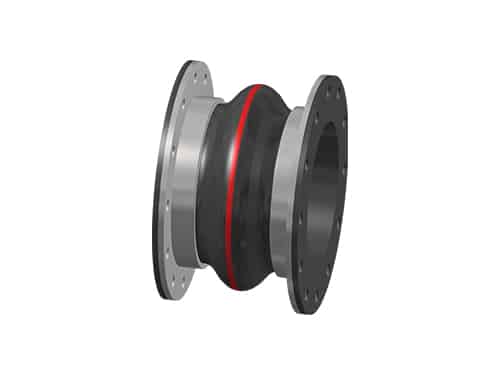

Hand-wound, highly elastic rubber expansion joint, very variable in design
- DN range: 40 – 5000
- Length (mm): variable from 150
- Pressure range (bar): max. 100
- Areas of application: Power stations, industrial plants, pipeline construction
- not in stock
TYP 42
Hand-wound, high or flat corrugated rubber compensator, support rings on the shaft base
- DN range: 50 – 3000
- Overall length (mm): 150 – 500
- Pressure range (bar): max. 25
- Areas of application: Paper industry, plant engineering
- not in stock

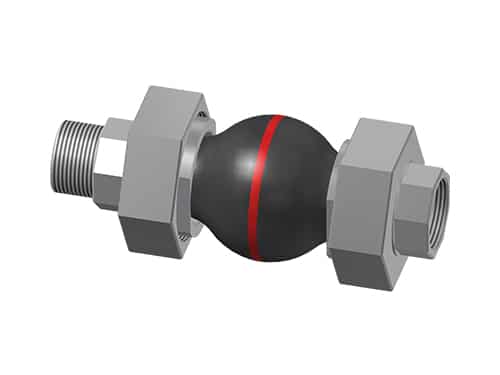

TYP 46
Moulded, flat corrugated rubber expansion joint with threaded connection
- DN range: 20 – 50 (3/4‘-2’)
- Overall length (mm): 130
- Pressure range (bar): max. 16
- Areas of application: Building services, engine technology, shipbuilding
- Approvals: CE, DNV, LR, BV, ABS, RINA and others
- Mainly in stock

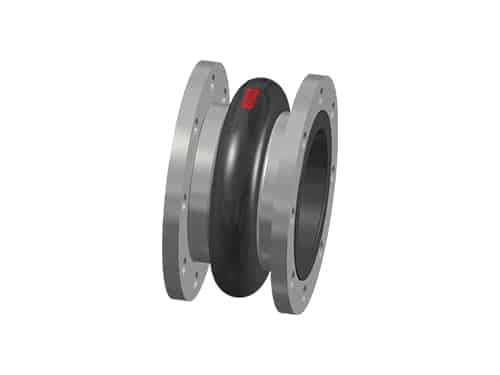

TYP 48
Moulded, flat corrugated rubber expansion joint with very low inherent resistance
- DN range: 50 – 200
- Overall length (mm): 150 – 160
- Pressure range (bar): max. 16
- Areas of application: Steelworks, plant construction
- Mainly in stock

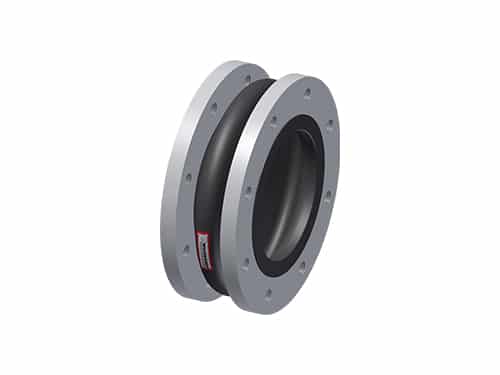

TYP 49
Moulded, highly elastic rubber expansion joint with short overall length
- DN range: 32 – 500
- Overall length (mm): 100 – 110
- Pressure range (bar): max. 25
- Areas of application: Building services engineering, plant engineering, weighing technology, shipbuilding
- Approvals: CE, DNV, LR, BV, ABS, RINA and others
- Mainly in stock
TYP 49 S
Moulded, highly corrugated rubber expansion joint for the food industry
- DN range: 40 – 500
- Overall length (mm): 100 – 110
- Pressure range (bar): max. 16/25
- Areas of application: Food processing plants, industrial plants
- Conformity: FDA and EN 1935/2004
- Mainly in stock
TYP 50
Moulded, flat corrugated rubber expansion joint with a wide variety of rubber qualities
- DN range: 20 – 1000
- Overall length (mm): 130 – 300
- Pressure range (bar): max. 16/25
- Areas of application: Plant engineering, building services engineering, water/waste water technology, shipbuilding
- PTFE lining optionally available
- Approvals: CE, DNV, LR, BV, ABS, RINA and others
- Mainly in stock
TYP 51
Moulded, flat corrugated rubber expansion joint for higher temperatures and pressures
- DN range: 32 – 600
- Overall length (mm): 130 – 300
- Pressure range (bar): max. 16/25
- Areas of application: Plant engineering, industrial plants
- Conformity: FDA and EN 1935/2004
- Partially in stock
TYP 52
Moulded, flat corrugated rubber expansion joint with a wide variety of lengths and rubber qualities
- DN range: 32 – 600
- Overall length (mm): 130 – 300
- Pressure range (bar): max. 16
- Areas of application: Industrial plants, life plants
- PTFE lining optionally available
- Conformity: FDA and EN 1935/2004
- Partially in stock

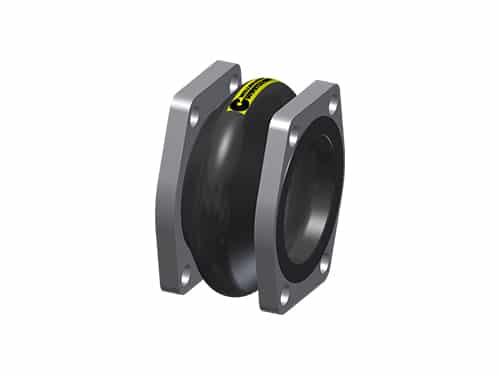

TYP 54
Moulded, highly corrugated rubber expansion joint with SAE flange connection
- DN range: 25 – 100
- Overall length (mm): 65 – 100
- Pressure range (bar): max. 2
- Areas of application: Hydraulic systems (SAE flanges)
- Mainly in stock

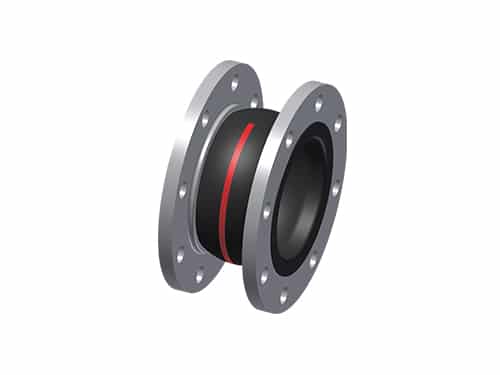

TYP 55
Moulded, flat corrugated rubber expansion joint with a wide variety of rubber qualities
- DN range: 20 – 1000
- Overall length (mm): 125 – 300
- Pressure range (bar): max. 16
- Areas of application: Plant engineering, building services engineering
- PTFE lining optionally available
- Approvals: CE, DNV, LR, BV, ABS, RINA and others
- Mainly in stock
TYP 55 SO
Moulded, flat corrugated rubber expansion joint for shock design
- DN range: 20 – 300
- Overall length (mm): 160 – 200
- Pressure range (bar): max. 16
- Areas of application: Shipbuilding, plant engineering, building services engineering
- Approvals: CE, DNV, LR, BV, ABS, RINA and others
- mostly in stock
TYP 56

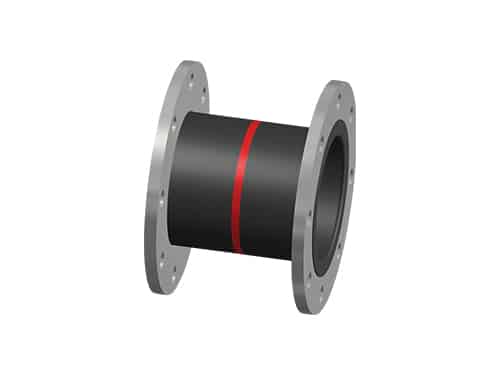

Hand-wound, cylindrical rubber expansion joint without shaft, with swivelling flanges
- DN range: 50 – 1000
- Overall length (mm): 150 – 1000
- Pressure range (bar): max. 16
- Areas of application: Industrial plants, paper industry, media containing solids
- not in stock
TYP 57

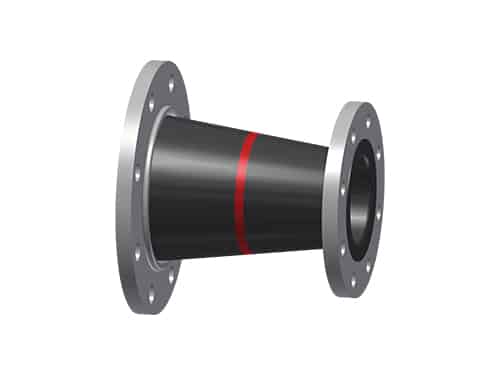

Hand-wound, conical rubber expansion joint, without shaft, with swivelling flanges
- DN range: 50 – 400
- Overall length (mm): 250 – 400
- Pressure range (bar): max. 16
- Areas of application: Industrial plants, paper industry, media containing solids
- not in stock

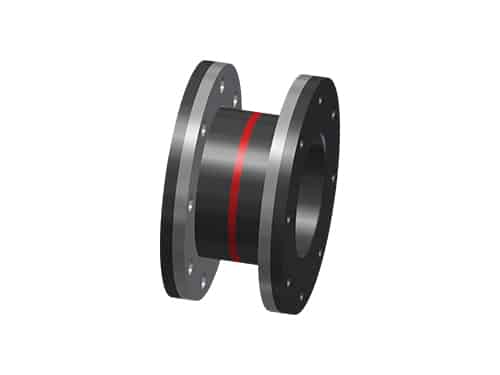

TYP 58
Hand-wound, cylindrical rubber expansion joint without shaft, with solid rubber flanges
- DN range: 50 – 3000
- Overall length (mm): 200 – 1000
- Pressure range (bar): max. 16
- Areas of application: Industrial plants, paper industry, media containing solids
- not in stock

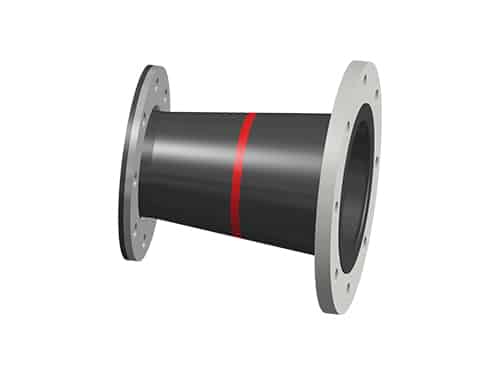

TYP 59
Hand-wound, conical rubber expansion joint without shaft, with solid rubber flanges
- DN range: 350 – 1500
- Length (mm): variable
- Pressure range (bar): max. 16
- Areas of application: Industrial plants, paper industry, media containing solids
- not in stock
TYP 60
Cylindrical, smooth pipe connector in solid rubber design, with vulcanised flange rings.
- DN range: 20 – 200
- Overall length (mm): 70 – 90
- Pressure range (bar): max. 10
- Areas of application: Building services engineering
- Mainly in stock
TYP 61

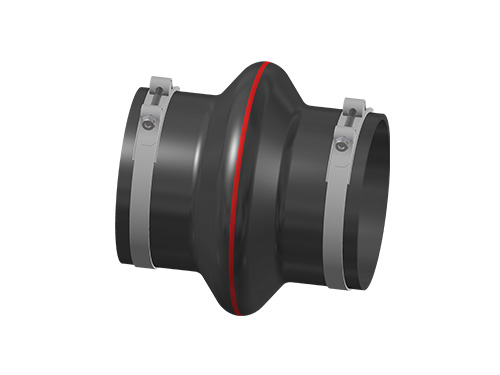

Hand-wound, flat corrugated rubber compensator for low flow resistance
- DN range: 50 – 1500
- Length (mm): 250 – variable
- Pressure range (bar): max. 8
- Areas of application: Industrial plants, waste water technology, motor technology
- partly in stock
TYP 62

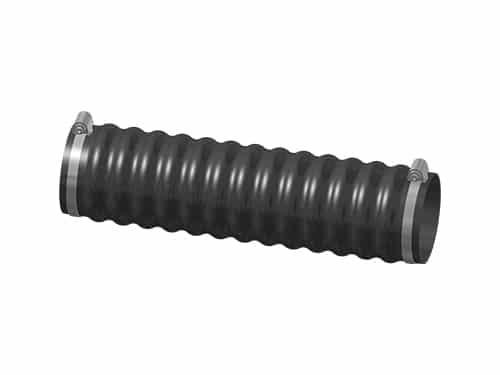

Hand-wound, flexible, multiple, slightly corrugated drainage hose
- DN range: 50 – 600
- Length (mm): variable
- Pressure range (bar): max. 0.5
- Areas of application: Drainage systems in/on halls, buildings and bridges
- not in stock

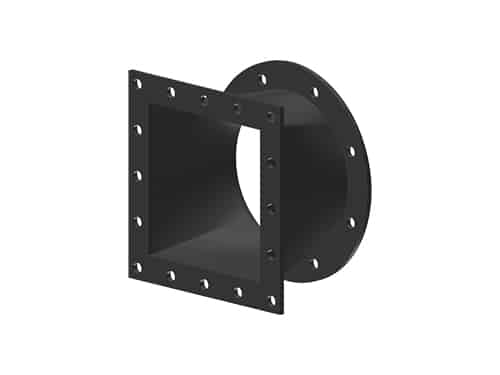

TYP 63
Free-moulded, hand-wound rubber compensator, very variable in design
- DN range: variable
- Overall length (mm): variable
- Pressure range (bar): max. 10
- Areas of application: Industrial systems, air/exhaust air technology
- not in stock

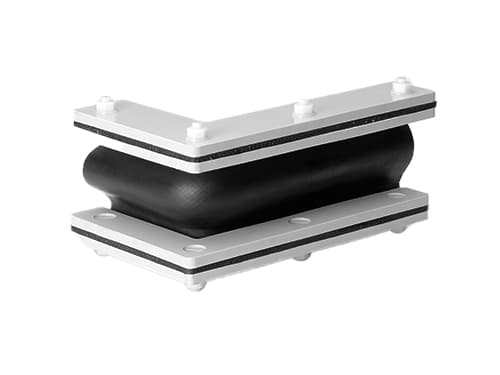

TYP 64
Compensator moulded from rubber foil, highly variable in nominal width and length
- DN range: variable
- Overall length (mm): max 500 mm
- Pressure range (bar): max. 0.2/0.33
- Areas of application: Air/exhaust air, bulk material and conveyor technology, duct sealing and power station construction
- not in stock
TYP 65

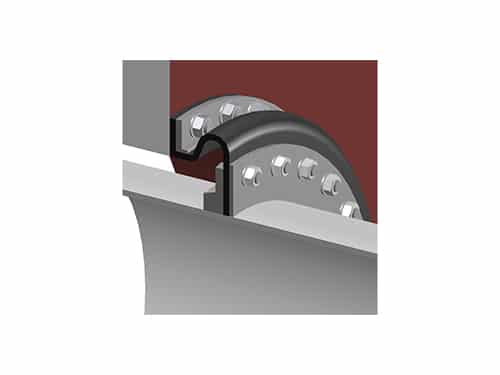

Free-moulded, hand-wound wall seal, very variable in design
- DN range: 80 – 5000
- Length (mm): variable
- Pressure range (bar): max. 2.5
- Areas of application: Building services engineering, plant engineering
Accessories and information
Available accessories (PDF)
Further information (PDF)
Order specification (PDF)
Installation instructions and approvals
